Instrument Panel CROSSMEMBER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

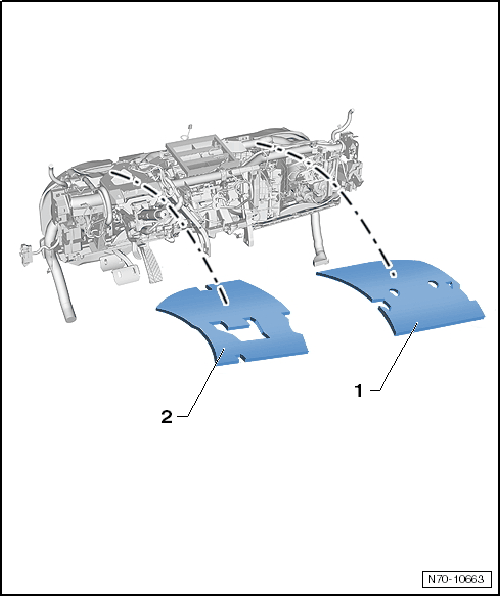

-- Remove the insulation -1- on the front passenger side.

-- Remove the insulation -2- on the driver side.

Fig 1: Identifying Removal/Installation Of Insulation From Driver Side And Front Passenger Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

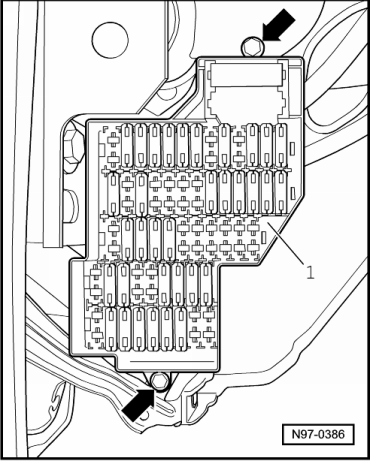

-- Remove both bolts -arrows- on the driver side and detach the retaining bracket -1-.

Fig 2: Identifying Fuse Holder And Screws -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Also detach the retaining bracket on the front passenger side as described.

-- Remove the Comfort System Central Control Module -J393-. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393- .

-- Remove the Comfort System Central Control Module - J393- bracket. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393- .

-- Remove the relay carrier in the left front footwell. Refer to RELAY CARRIER .

-- Remove the Vehicle Electrical System Control Module -J519-. Refer to CONTROL MODULES .

-- Remove the wiper arms. Refer to WINDSHIELD WIPER SYSTEM

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD .

-- Remove the wiper frame with the linkage and the Windshield Wiper Motor -V-. Refer to WINDSHIELD WIPER SYSTEM .

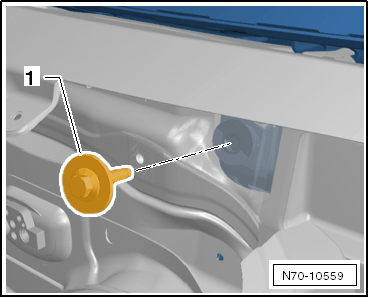

-- Remove the bolt -1- in the plenum chamber on the driver side (20 Nm +90°).

Fig 3: Identifying Removal Of Bolt -1- From Plenum Chamber On Driver Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The bolt -1- must be replaced when installing the instrument panel crossmember!

-- Disconnect the steering column from the crossmember .

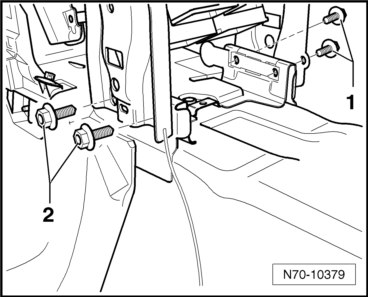

-- Remove the two bolts -1- and -2- (20 Nm) on the left and right sides of the two tunnel supports.

Fig 4: Identifying Bolts -1- And -2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Use a scriber to mark the height and side position of the crossmember in the vehicle around the nuts -1 and 2-.

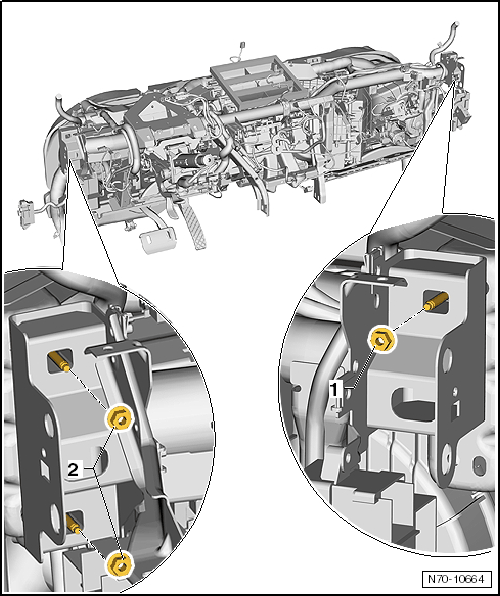

-- Remove the nut -1- (20 Nm) on the front passenger side.

-- Remove the 2 nuts -2- (20 Nm) on the driver side.

Fig 5: Identifying Removal Of Nuts From Driver Side And Front Passenger Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

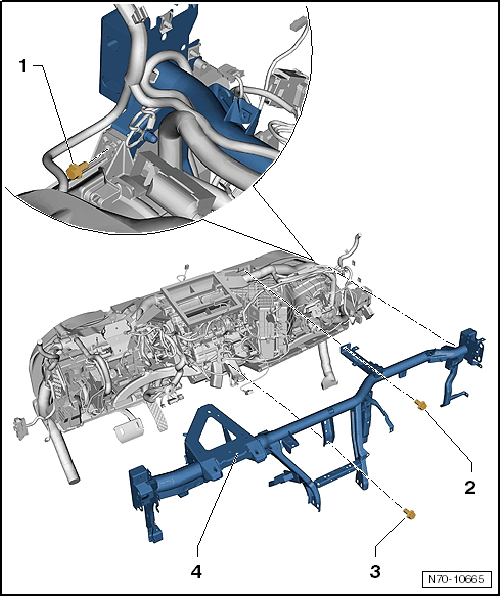

-- Remove the bolt -1- on the front passenger side (10 Nm).

-- Remove the bolts -2- and -3- (10 Nm).

-- With a second technician, carefully remove the crossmember -4- from the vehicle.

Fig 6: Identifying Removal/Installation Of Crossmember -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
