Instrument Panel CROSSMEMBER, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

If an instrument panel crossmember is replaced, 3 brackets must be taken from the old part.

-- Remove the brackets -2-, -6- and -7- from the old part.

-- Bolt the bracket -2- with the bolt -1- in the center of the crossmember(1.5 Nm).

-- Bolt the bracket -2- with the bolt -3- (1.5 Nm).

-- Bolt the right bracket -6- with the bolt -5- (8 Nm).

-- Bolt the right bracket -6- with the bolt -4- (8 Nm).

-- Bolt the left bracket -7- with the bolt -8- (8 Nm).

-- Bolt the left bracket -7- with the bolt -9- (8 Nm).

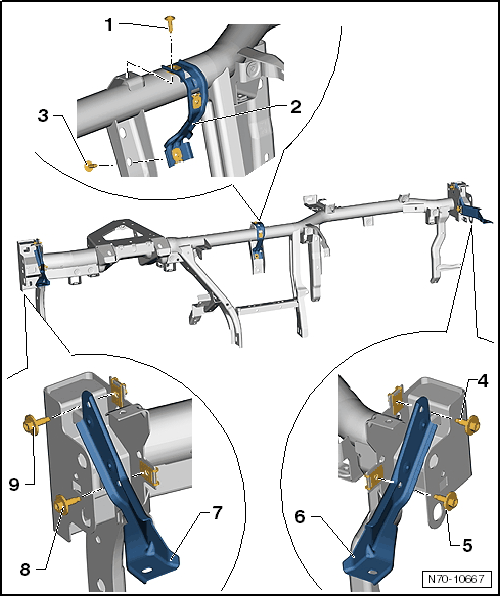

Fig 1: Identifying Bolt Installation On Brackets -2-, -6- And -7-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install In Reverse Order Of Removal.

NOTE:

Before installing the crossmember, line it up with the markings made before it was removed.
