Transmission, Removing And Installing, Hybrid Vehicles: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Brief Description

The transmission is removed individually in a downward direction in these vehicles. The engine and electric drive motor remain in the vehicle.

Special Tools And Workshop Equipment Required

Bracket - Multiple Use:30 - 211 A
Pry Lever:80 - 200
Engine and Gearbox Jack:VAS6931
Crankshaft Socket:T40058
Depth Gauge:VAS6082
Engine Bung Set:VAS6122
Step Ladder:VAS5085
Gearbox Support:T40173 with Scissor Lift Table - Gearbox Support Pads:VAS6131/14-1
Not illustrated: Transmission Support:T40173/1

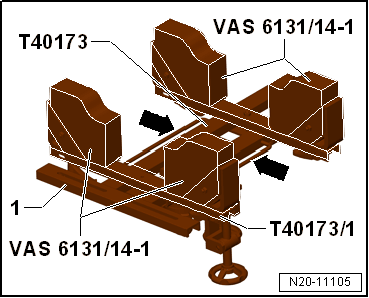

Fig 1: Chrome Plated Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Before using the :T40173 , always make sure it matches the current version.

The older version mounts should not be used and should be replaced with the newest version.

Characteristics (newer version):

On the newer version the components colored -red- in the image -arrows- are yellow chrome plated.

If the mount does not comply with corresponding specifications, proceed as follows:

German market: contact the Matra company for an exchange.
Other markets (worldwide outside of Germany): contact the importer for an exchange.

Retrofit the :T40173 as follows:

-- Expand the :T40173 using the :T40173/1 . To do so, install the :T40173/1 between the fixed support -1- and the brackets -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts

Washer, Lock - Selector Mechanism Cable
O-rings - ATF Pipes
Bolts - Torque Converter
Bolts - Transmission
