Transmission Control Module -J217-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The control module identification and coding is needed only if the transmission control module is being replaced.

-- Obtain the control module identification and coding for the Transmission Control Module -J217-.

-- Move the seat as far forward as possible.

Fig 1: Front Bolts -4- & -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear bolts -2 and 3-.

-- Move the seat as far back as possible.

-- Remove the front bolts -4 and 1-.

-- Fold the seat to the rear.

-- Pull the carpet under the seat forward.

Remove both the Transmission Control Module -J217- -1- and the housing together and then separate them.

Fig 2: Identifying Transmission Control Module -1- And Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Ignore item -2-.

-- Disconnect the connector from the Transmission Control Module -J217- -1-.

-- Remove the bolt -upper arrow- and pull the housing with the control module out of the mount.

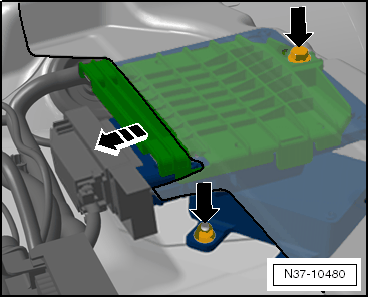

Fig 3: Remove The Bolt -Upper Arrow- & Pull The Housing With The Control Module Out Of The Mount.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Ignore the nut -lower arrow-.

-- Pull the retaining tabs outward in direction of -arrows 1- and pull the control module out of the housing in direction of -arrow 2-.

Fig 4: Pulling Retaining Tabs Outward And Pulling Control Module Out From Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
