Special Tools

Fig 1: Identifying Special Tools -- Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Bracket - Multiple Use:30-211A
• Pry Lever:80-200
• Engine and Gearbox Jack:VAS6931
• Crankshaft Socket:T40058
• Depth Gauge:VAS6082
• Engine Bung Set:VAS6122

Fig 2: Identifying Special Tools -- Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Hose Clamps - Up To MM.:3093
• Hose Clamps - Up To 25mm:3094
• Engine Support - Basic Set:T40091
• Engine Support - Supplement Kit:T40093A
• Hose Clip Pliers:Vague
• Step Ladder:VAS5085

Fig 3: Identifying Special Tools -- Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Bracket - Multiple Use:30-211A
• Pry Lever:80-200
• Engine and Gearbox Jack:VAS6931  with Universal Transmission Support:VAG1359/2
• Depth Gauge:VAS6082
• Engine Bung Set:VAS6122

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

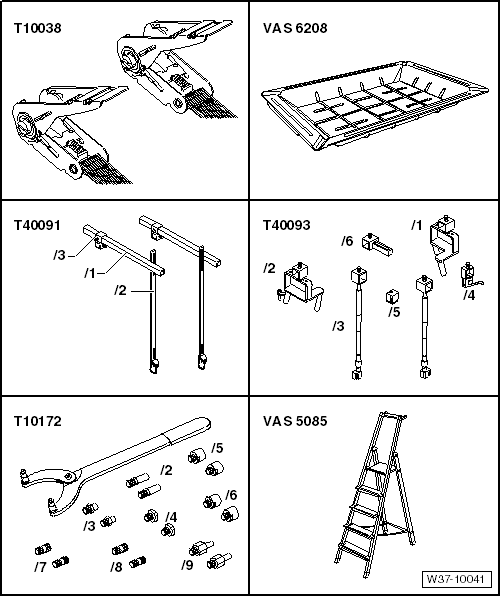

Special Tools And Workshop Equipment Required

• Tensioning Strap:T10038
• Shop Crane - Drip Tray:Vassal
• Engine Support - Basic Set:T40091
• Engine Support - Supplement Kit:T40093A
• Counterhold - Kit - Multiple Use - Adapter 1:T10172/1
• Step Ladder:VAS5085

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Engine Support Bridge:10-222A  with Engine Support Bridge - Engine Support 3:10-222A/3  (quantity: 2)
• Engine Support - Bracket w/Spindle and hook:10-222A/10  (quantity: 4)
• Engine Support Bridge - Engine Support 28:10-222A/28  (quantity: 2)
• Engine Support Bridge - Gearbox Adapter:10-222A/29
• Square Pipe:T40091/1  (quantity: 2) with Moveable Joint:T40091/3  (quantity: 2)
• Rail with Holes:T40091/2
• Bracket - Multiple Use:30-211A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

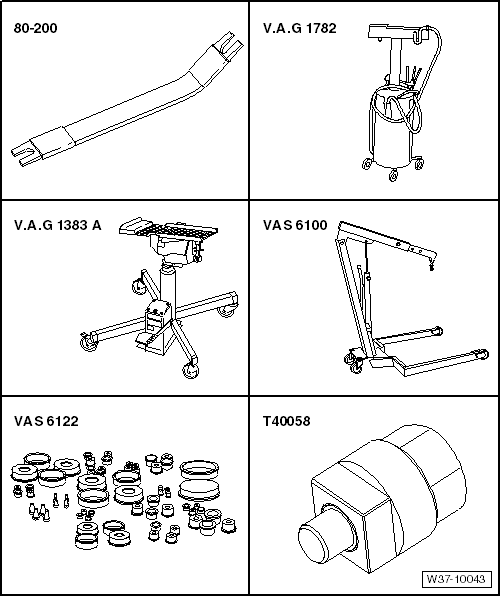

Special Tools And Workshop Equipment Required

• Pry Lever:80-200
• Used Oil Collection and Extraction Unit:SMN372500
• Engine and Gearbox Jack:VAS6931
• Shop Crane:VAS6100
• Engine Bung Set:VAS6122
• Crankshaft Socket:T40058

Fig 4: Identifying Special Tools -- Transmission, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Torque Wrench 1331 5-50Nm:VAG1331
• Used Oil Collection and Extraction Unit:SMN372500
• Vehicle Diagnostic Tester
• Shop Crane - Drip Tray:Vassal
• Oil Filler:VAS6262A
• Oil Filler - Adapter 2:VAS6262/2

Fig 5: Identifying Special Tools -- Transmission, Transporting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Engine Sling:2024A
• Engine Shackle:T10059
• Shop Crane:VAS6100

Fig 6: Identifying Special Tools -- Output Shaft Seal, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Puller - Unit Injector:T10055
• Puller - Unit Injector - Adapter 2:T10055/2
• Seal Installer - Output Shaft Oil Seal:T10180
• Seal Installer - Output Shaft Oil Seal:T10186

Special Tools And Workshop Equipment Required

• Seal Installer - Selector Shaft Oil Seal:T10174
  Fig 7: Identifying Thrust Piece T10174

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Assembly Tool:T10534

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Socket And Key:T40031
  Fig 8: Identifying Socket And Key T40031

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Gearbox Support:T40173  with Scissor Lift Table - Gearbox Support Pads:VAS6131/14-1
  Fig 9: Gearbox Support T140173

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers:VAG1275A
  Fig 10: Identifying Hose Clip Pliers

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers:VAS6362
  Fig 11: Clamp Pliers VAS 6362

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Lifting Tackle:3033
  Fig 12: Identifying Lifting Tackle 3033

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Transmission Support:T40173/1
