Selector Lever Handle, Removing And Installing: Overview: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

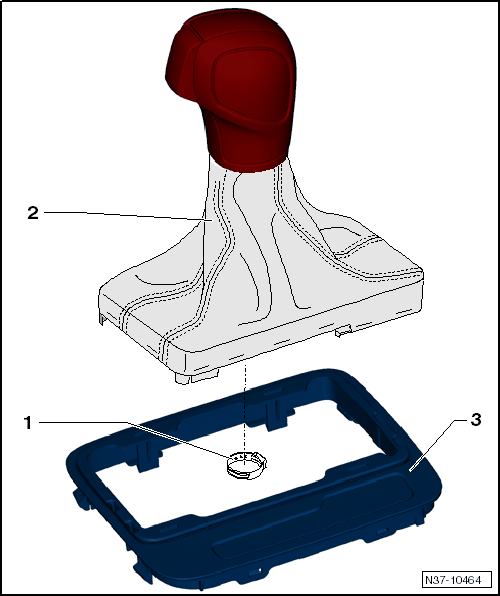

Fig 1: Exploded View Of Selector Lever Knob & Boot
GWWN37-10464Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Ear Clamp
    • For fastening the handle on the selector lever
    • Will be damaged during removal, always replace.
  2. Handle with Boot
    • Removed together with the shift cover.
  3. Shift Cover
    • Removed together with the handle
