Overview - Selector Mechanism, Vehicles Through 05/2012

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

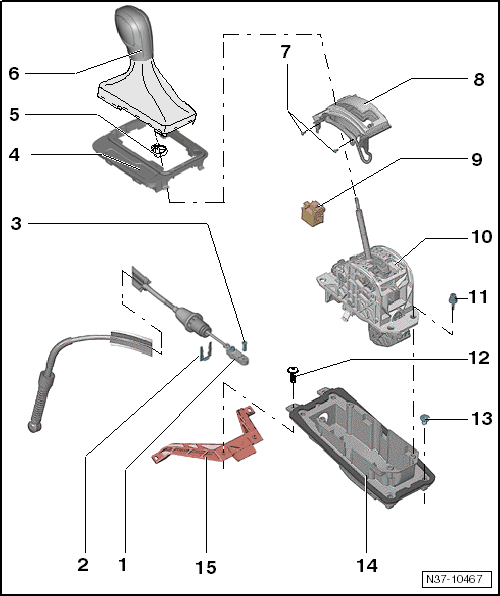

Fig 1: Exploded View Of Selector Mechanism

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Selector Lever Cable
- Do not bend
- Selector lever cable, removing and installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING, VEHICLES THROUGH 05/2012 .
- Selector lever cable, adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
Clip
Selector Lever Cable Bolts
Cover
- With selector lever scale
- Removed together with the selector lever handle -item ) OVERVIEW - SELECTOR MECHANISM, VEHICLES THROUGH 05/2012 - SELECTOR LEVER HANDLE WITH BOOT
Ear Clamp
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Selector Lever Handle with Boot
- Selector lever handle, removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Bolt
- 6.5 Nm
- Quantity: 4
Selector Lever Sensor System Control Module -J587- with Tiptronic Switch -F189-
- Removing and installing. Refer to SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE -J587- WITH TIPTRONIC SWITCH -F189-, REMOVING AND INSTALLING, VEHICLES THROUGH 05/2012 .
Shift Lock Solenoid -N110-
- Removing and installing. Refer to SHIFT LOCK SOLENOID -N110-, REMOVING AND INSTALLING, VEHICLES THROUGH 05/2012 .
Selector Mechanism
- With installed Transmission Park Selector Switch -F305-
- Removing and installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
Bolt
- 6.5 Nm
- Quantity: 4
Bolt
- 6.5 Nm
- Quantity: 2
Bolt
- 10 Nm
- Quantity: 4
Shift Unit/Cover
- Can only be removed downward
Centering Bracket
