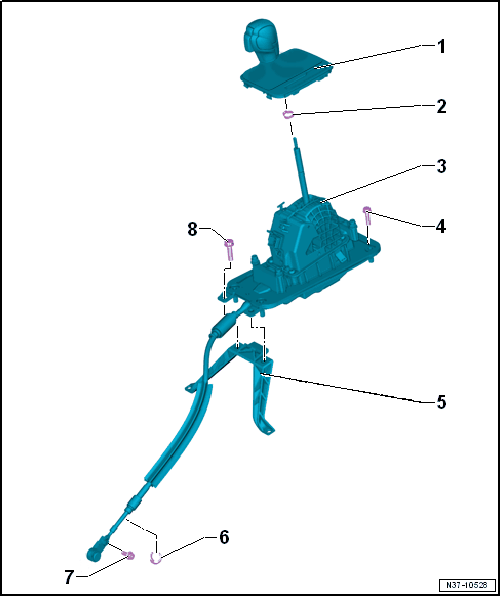

Overview - Selector Mechanism, Vehicles From 06/2012
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Handle with Shift Cover
- Selector lever handle, removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
- Ear Clamp
- For fastening the handle on the selector lever
- Will be damaged during removal, always replace.
- Selector Mechanism with Gearshift Housing and Selector Lever Cable
- With installed Selector Lever Park Position Lock Switch -F319-, with Selector Lever Sensor System Control Module -J587- with Tiptronic Switch -F189- and Shift Lock Solenoid -N110-
- The selector mechanism and the selector lever cable cannot be separated from each other. Both are removed at the same time.
- Do not bend or kink the cable.
- Removing and installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Checking and adjusting the cable. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
- Bolt
- 10 Nm
- Quantity: 4
- Centering Bracket
- Not reinstalled after assembly
- Lock Washer
- Always replace after removing
- Bolt
- 12 Nm
- Bolt
- Quantity: 2
- Not reinstalled after assembly
