Emergency Release From >>P<<, Vehicles Through 04/2010: Procedure

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the storage compartment/ashtray.

-- Unclip the trim in the front center console in direction of -arrows-.

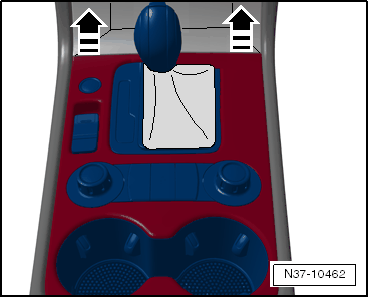

Fig 1: Unclip The Trim In The Front Center Console -Arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the trim just enough to make the emergency release accessible. It is not necessary to disconnect the electrical harness connectors.

-- Move the emergency release lever up with a finger or a screwdriver -arrow- while pressing the push button on the handle and shifting the selector lever out of "P".

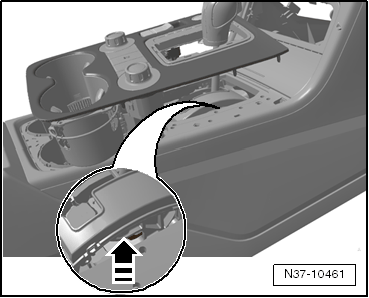

Fig 2: Move The Emergency Release Lever Up With A Finger Or A Screwdriver -Arrow

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The trim can now be reinstalled in the center console.

NOTE:

Prior to installation of the trim, check that all electrical harness connectors are connected.
