Emergency Release From >>P<<, Vehicles From 06/2012: Procedure

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Unclip the shift cover from the trim.

Fig 1: Identifying Trim Shift Cover
GWWN37-10465Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

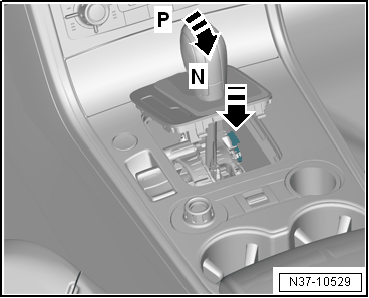

-- Hold the shift cover to the side and from above push the yellow plastic part and hold it in this position.

GWWN37-10529Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The selector lever cannot be moved out of >>P<<.
