Auxiliary Hydraulic Pump Control Module -J922-, Removing And Installing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Short Description:

The Auxiliary Hydraulic Pump Control Module -J922- may be installed in different locations, depending on which auxiliary hydraulic pump it controls.

The Auxiliary Hydraulic Pump Control Module -J922- -2- and the Transmission Control Module -J217- -1- are located under the right front seat if the vehicle has a "Start/Stop System".

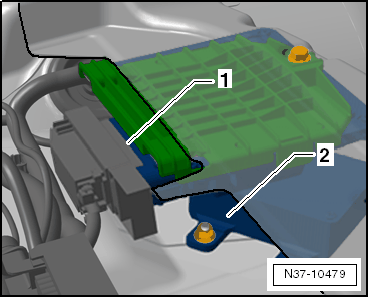

Fig 1: Identifying Transmission Control Module -1- And Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The following describes removing and installing the control module. Refer to AUXILIARY HYDRAULIC PUMP CONTROL MODULE -J922-, REMOVING AND INSTALLING, "START/STOP SYSTEM" .

The Auxiliary Hydraulic Pump Control Module -J922- is located in the right wheel housing behind the wheel housing liner for vehicles with a "Hybrid Engine".

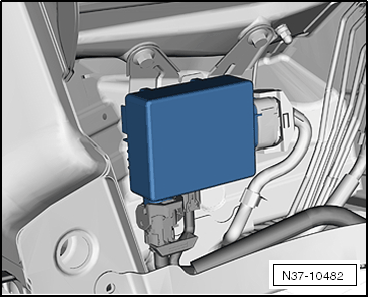

Fig 2: Auxiliary Hydraulic Pump Control Module -J922-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing and installing the control module is described in: AUXILIARY HYDRAULIC PUMP CONTROL MODULE -J922-, REMOVING AND INSTALLING .

Additional information regarding the control modules:

Refer to Self Study Program 8-Speed Automatic Transmission 0C8
