Auxiliary Hydraulic Pump Control Module -J922-, Removing And Installing, "Start/Stop System": Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the seat as far forward as possible.

Fig 1: Front Bolts -4- And -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear bolts -2- and -3-.

-- Move the seat as far back as possible.

-- Remove the front bolts -4- and -1-.

-- Fold the seat to the rear.

-- Pull the carpet under the seat forward.

-- Remove the bolt -upper arrow- and the Transmission Control Module -J217- with the housing from the mount and move them to the side.

Fig 2: Remove The Bolt -Upper Arrow- And Pull The Housing With The Control Module Out Of The Mount.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -lower arrow-.

-- Remove the right A-pillar lower trim panel. Refer to A-PILLAR UPPER TRIM, REMOVING AND INSTALLING /A-PILLAR CENTER TRIM, REMOVING AND INSTALLING /A-PILLAR LOWER TRIM, REMOVING AND INSTALLING .

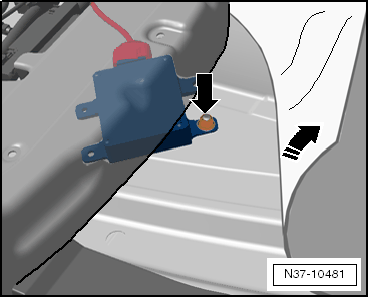

-- Fold the carpet forward and remove the nut -arrow-.

-- Remove the Auxiliary Hydraulic Pump Control Module -J922-.

-- Disconnect the connector.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
