ATF Pipes, Removing And Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Short Description

The ATF lines can be routed differently depending on the engine type.

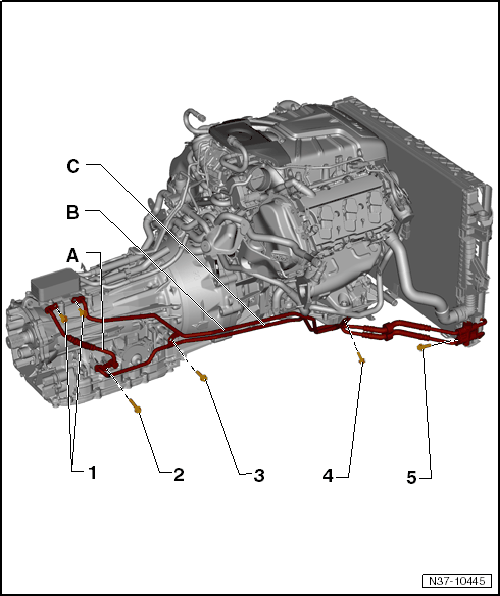

Fig 1: Identifying Transmission Fluid Pipe Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Bolt
- 8 Nm
- Before tightening the bolt, insert the pipes all the way in by hand
2 - Bolt
- 20 Nm
- Before tightening the bolt, insert the pipes all the way in by hand
3 - Bolt
- 20 Nm
4 - Bolt
- 8 Nm
5 - Bolt
- 8 Nm
- Before tightening the bolt, insert the pipes all the way in by hand
A - ATF Pipe
- Coat the O-ring with ATF.
B - ATF Pipe
- Coat the O-ring with ATF.
C -ATF Pipe
- Coat the O-ring with ATF.
