Rear Final Drive, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

A second technician will be needed to remove and install the final drive.

-- Lift the vehicle.

-- Remove the impact guard under the rear final drive, if equipped. .

-- Remove the rear section of the exhaust system. Refer to appropriate service information. .

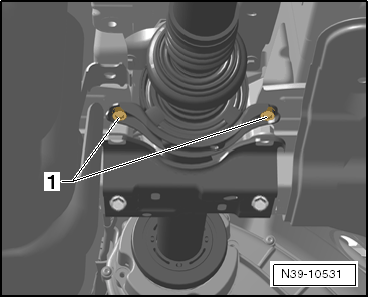

-- Remove the center support -1-. The tunnel brace is not removed.

GWWN39-10531

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mark the installed position of the driveshaft on the rear final drive -arrow-.

GWWN39-10517

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Driveshaft is only removed on the back of the final drive.

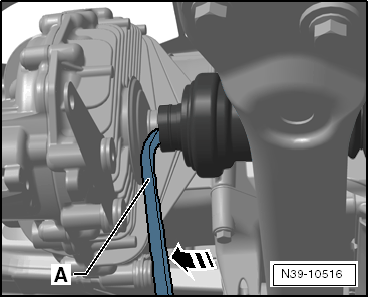

-- Remove the driveshaft with the pry lever -A- from the rear final drive pin. Push the driveshaft forward until the pin is free.

GWWN39-10516

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

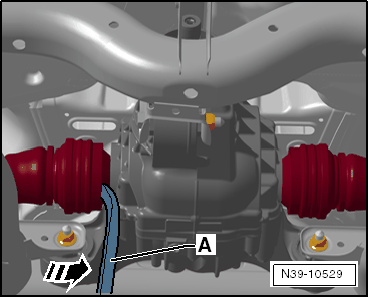

-- Remove the right and left drive axle flange from the final drive using a pry lever in direction of -A-.

GWWN39-10529

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right drive axle. Refer to DRIVE AXLE ASSEMBLY .

-- Close the opening in the drive axle flange with a plug.

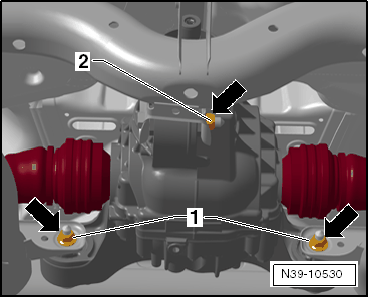

-- Remove the nuts -arrows-. Do not remove the bolts yet.

GWWN39-10530

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts form the subframe together with a second technician -arrows- while holding the subframe in its installed position.

-- Guide the final drive out of the drive axle flange and remove the final drive downward.
