Flange/Driveshaft Seal On Rear Final Drive, Replacing (Final Drive Removed), Final Drive 0BN: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear final drive. Refer to REAR FINAL DRIVE, REMOVING AND INSTALLING .

-- Lay the final drive on a workbench.

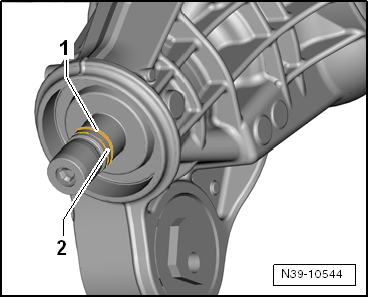

-- Remove the O-ring -1- and the circlip -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Punch two holes into the cover using a Drift and then install the screws -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the 4 mm diameter screws.

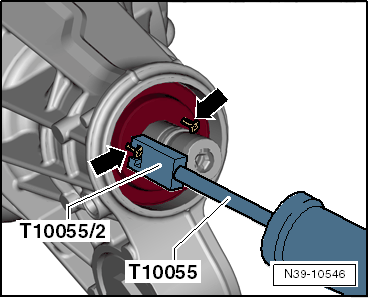

-- Remove the dust cap using the Puller - Unit Injector:T10055 .

-- Punch two holes into the seal using a Drift.

-- Install the 4 mm diameter screws.

NOTE:

Be careful not to install the screw too deep otherwise the bearing underneath will get damaged.

-- Remove the seal using the Puller - Unit Injector:T10055 .
