Flange/Driveshaft Seal On Rear Final Drive, Replacing (Final Drive Removed), Final Drive 0BN: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Fill the space between the sealing and dust lip halfway with Sealing Grease:G 052 128 A1 .

-- Cover the splines on the stub shaft with adhesive tape.

-- Install the new seal into the seal seat on the final drive.

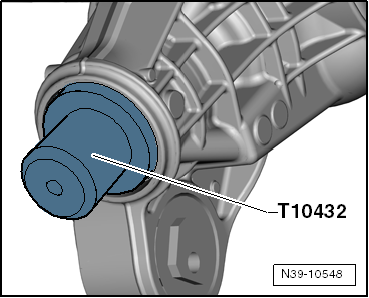

-- Install the seal all the way using the Seal Installer - Shaft Seal:T10432 . Be careful not to tilt it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the adhesive tape.

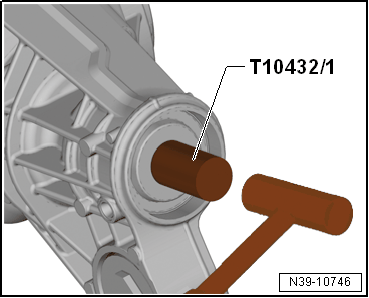

-- Install the new dust cap using the Seal Installer - Shaft Seal - Thrust Piece:T10432/1 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the new O-ring and circlip.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the rear final drive. Refer to REAR FINAL DRIVE, REMOVING AND INSTALLING .

-- Check the transmission fluid level in the rear final drive. Refer to REAR FINAL DRIVE, CHECKING TRANSMISSION FLUID .
