Rear Bonded Rubber Bushing, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Mount the bonded rubber bushing on the final drive in its installed position.
NOTE:
The small hole and the large recesses on the bonded rubber bushing -arrows- must be horizontal to the final drive. The small hose faces outward.

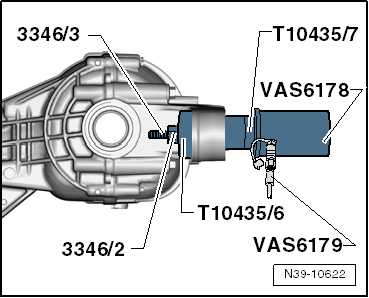

-- Install the bonded rubber bushing.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
