Front Driveshaft, Removing And Installing, Driveshaft With Joint On Both Sides: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Lift the vehicle.

-- Remove the noise insulation and bracket under the transmission. Refer to NOISE INSULATION .

-- Remove the front muffler or the particulate filter depending on the type of engine. .

-- Mark the installed position of the driveshaft on the transfer case and front final drive.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

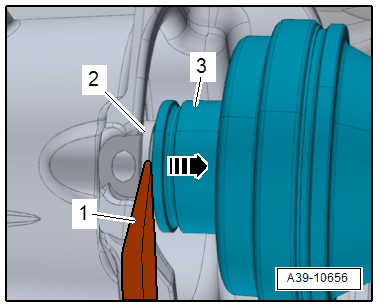

-- Use a pry lever -1- to remove the drive axle from the front final drive -2- in direction of -arrow-. To do this, position the pry lever on the push-on connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Danger of causing damage to the driveshaft.

The pry lever -1- must be mounted on the push-on connector -3- in order to remove the driveshaft from the front final drive -2-.
The pry lever -1- will get damaged if is touching the boot. Then it will necessary to remove the driveshaft.

NOTE:

A circlip secures the driveshaft to the pin and can be pulled off with a forceful pull.

-- Guide the driveshaft downward and remove it.
