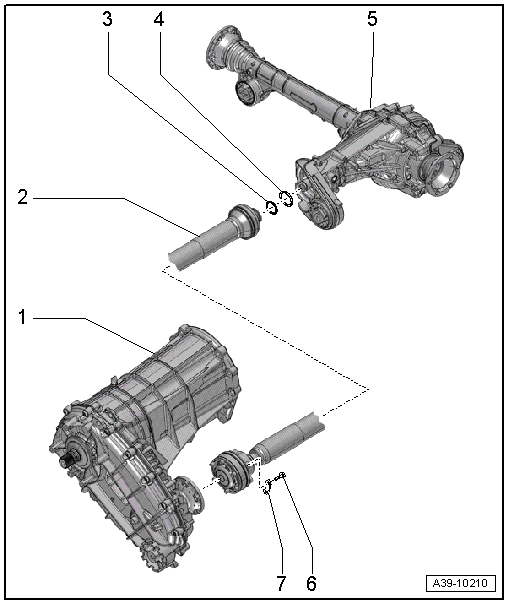

Component Location Overview - Front Driveshaft With Joint On One Side
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Transfer Case
- Observe colored marking on driveshaft flange
- Front Driveshaft
- Removing and installing. Refer to FRONT DRIVESHAFT, REMOVING AND INSTALLING .
- Circlip
- Replacing
- 23 mm diameter
- Color: silver
- O-Ring
- Replacing
- 23 mm diameter
- Color: green
- Front Final Drive
- Observe colored marking on driveshaft flange
- Bolts
- 30 Nm +90° turn
- Always replace after removing
- Quantity: 6
- Lock Plate
