Differential Lock Motor -V304-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect both connectors from the Differential Lock Motor -V304-.

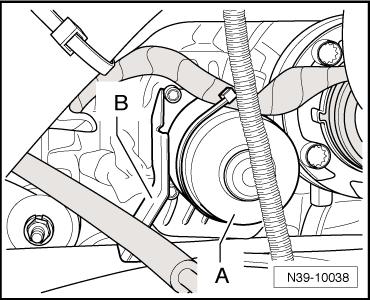

-- Remove the four bolts and the Differential Lock Motor -V304- -A- with the bracket for the connector -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
