Bonded Rubber Bushing On Left Housing, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Mount the bonded rubber bushing on the final drive in its installed position.
NOTE:

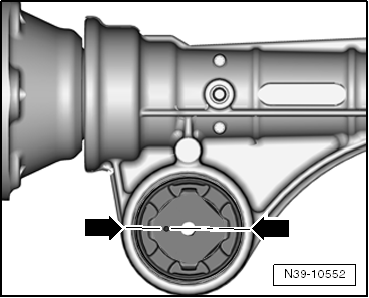

The small hole and the larger recesses on the bonded rubber bushing -arrows- must be horizontal to the final drive.
-- Install the bonded rubber bushing until it is fits into the center of the front final drive housing.
