Bonded Rubber Bushing With Asymmetrical Hole Pattern

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

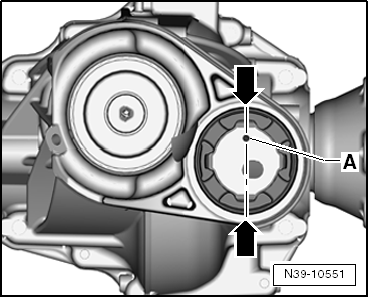

GWWN39-10551Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The small hole -A- and the large recesses on the bonded rubber bushing -arrows- must be vertical to the final drive.
