Tightening Specification

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

There are different brackets and transmission supports due to the different engine versions and different neck lengths on the transfer case.

There are also different attachment points for attaching the bracket to the transfer case and to the transmission support:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket to transmission support

Always replace the bolts.

50 Nm + 90°

Bracket to transfer case

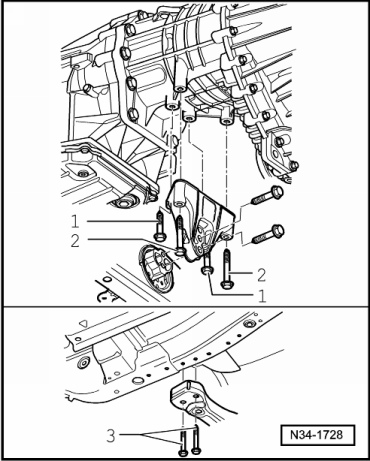

Bolts -1- M8 x 35	20 Nm
Bolts -2- M8 x 70	20 Nm

Transmission support to body Always replace the bolts.
Bolts -3- M10 x 80	50 Nm + 90°

-- Install the impact guard under the transmission support and bracket, if equipped. Refer to appropriate service information. .
