Transfer Case, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Lift the vehicle.

-- Remove the noise insulation and bracket under the transmission. Refer to NOISE INSULATION .

-- Remove the rear section of the exhaust system. Refer to EXHAUST MANIFOLD [For engine(s) CGRA] .

-- Remove the rear driveshaft. Refer to REAR DRIVESHAFT, REMOVING AND INSTALLING .

-- Remove the front driveshaft. Refer to FRONT DRIVESHAFT, REMOVING AND INSTALLING .

-- Remove the exhaust system from the transmission support or the transfer case, depending on the engine. Refer to EXHAUST MANIFOLD [For engine(s) CGRA] .

-- Move the Engine and Gearbox Jack :VAS6931 with the Transmission Support :3282 under the transmission and align it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

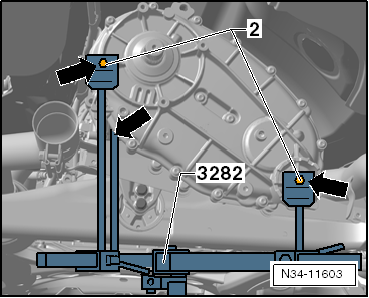

-- Secure the transfer case on the Transmission Support :3282 -arrows- as illustrated. Remove the chain balancer from the transfer case beforehand, if equipped.

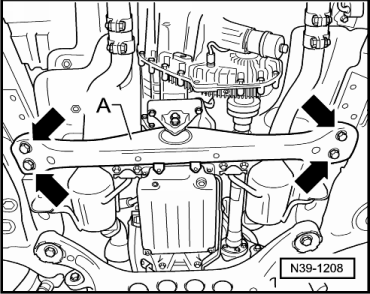

-- Remove the transmission support -A- from the assembly -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

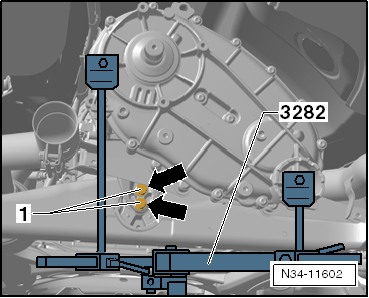

-- Remove both bracket bolts -arrows- from the transmission support.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the transmission support and lay it down.

-- Remove the side and lower bolts that connect the transfer case and transmission.

-- Slightly lower the engine/transmission assembly using the Engine and Gearbox Jack :VAS6931 if necessary.

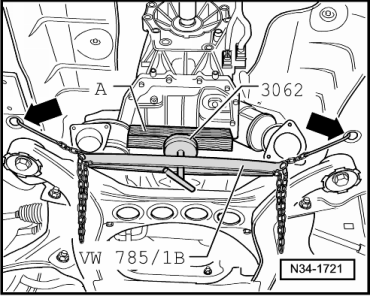

-- Secure the engine/transmission subassembly to the body -arrows- using the Transmission Support :VW785/1B as follows:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Grease the Press Piece contact surface of the Transmission Support :VW785/1B with Multipurpose Grease.

-- Mount the Press Piece on the Bearing Installer - Multiple Use :3062 . The smaller diameter of the Bearing Installer - Multiple Use :3062 faces the Pressure Piece.

-- Place a piece of Wood -A- between the transmission and the Bearing Installer - Multiple Use :3062 .

-- Remove the upper transfer case/transmission bolts.

-- Remove the transfer case from the transmission.

-- Lower the transfer case.
