Rear Output Flange/Driveshaft Seal, Replacing (Transfer Case Installed): Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear driveshaft. Refer to REAR DRIVESHAFT, REMOVING AND INSTALLING .

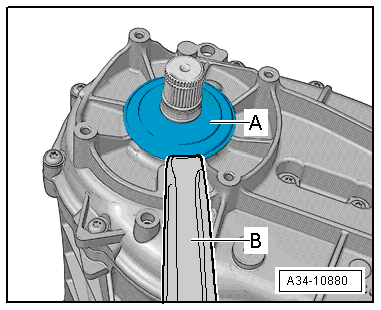

-- Remove the dust cap -A- with a pry lever -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Always replace the dust cap.

-- Make a hole in the center of the shaft seal with a Drift.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

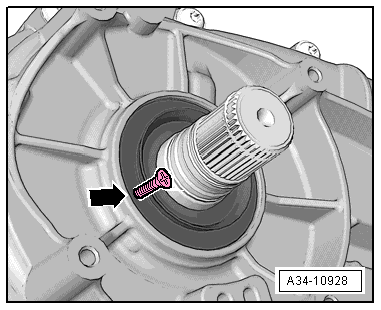

-- Install the 4 mm diameter -arrow- screws.

NOTE:

Do not damage sealing surface on the input shaft when doing so.

Be careful not to install the screw too deep otherwise the bearing underneath will get damaged.

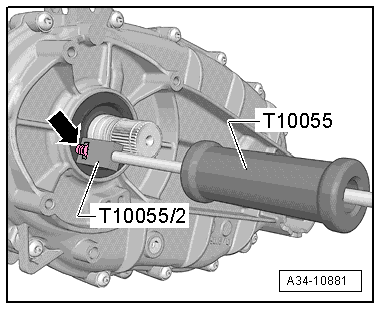

-- Remove the shaft seal using the Puller - Unit Injector :T10055 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
