Overview - Transfer Case Shaft Seals Without Flange

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

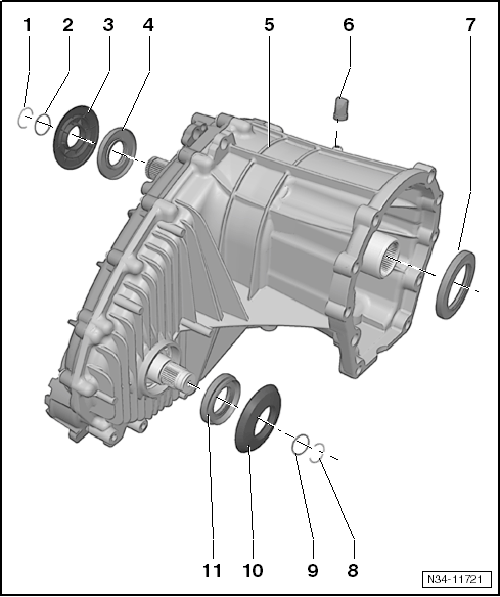

Fig 1: Transfer Case Shaft Seals Exploded View

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Circlip
- Replacing
O-Ring
- Replacing
Dust Cap
- Replacing
- Removing and installing. Refer to REAR OUTPUT FLANGE/DRIVESHAFT SEAL, REPLACING (TRANSFER CASE INSTALLED) .
Shaft Seal
- Removing and installing. Refer to REAR OUTPUT FLANGE/DRIVESHAFT SEAL, REPLACING (TRANSFER CASE INSTALLED) .
Transfer Case
- Removing and installing. Refer to TRANSFER CASE, REMOVING AND INSTALLING .
Bleed Cap
Shaft Seal
- Removing and installing. Refer to INPUT SHAFT SEAL, REMOVING AND INSTALLING .
Circlip
- Replacing
O-Ring
- Replacing
Dust Cap
- Replacing
- Removing and installing. Refer to FRONT OUTPUT FLANGE/DRIVESHAFT SEAL, REPLACING (TRANSFER CASE INSTALLED) .
Shaft Seal
- Removing and installing. Refer to FRONT OUTPUT FLANGE/DRIVESHAFT SEAL, REPLACING (TRANSFER CASE INSTALLED) .
