Input Shaft Seal, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Lightly coat the outer circumference of the new shaft seal with oil.

-- Fill the space between the sealing and dust lip halfway with Sealing Grease :G 052 128 A1  .

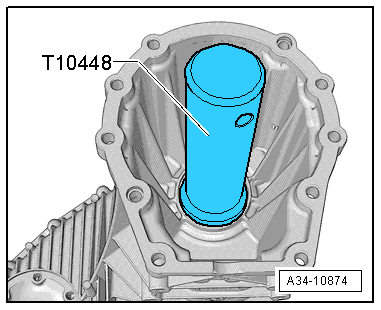

-- Install the new shaft seal all the way using the Seal Installer - Input Shaft :T10448  . Be careful not to tilt it.

GWWA34-10874Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the transfer case. Refer to TRANSFER CASE, REMOVING AND INSTALLING .

-- Check the transmission fluid level in the transfer case. Refer to TRANSFER CASE, CHECKING TRANSMISSION FLUID LEVEL .
