Front Output Flange/Driveshaft Seal, Replacing, Transfer Case Without Flange: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Lightly coat the outer circumference of the new shaft seal with oil.

-- Fill the space between the sealing and dust lip halfway with Sealing Grease :G 052 128 A1 .

-- Install the new shaft seal all the way using the Seal Installer - Flange Shaft :T10449 . Be careful not to tilt it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

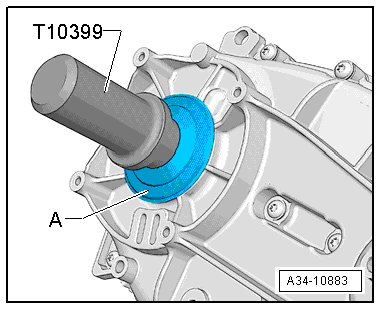

-- Install the new dust cap -A- on the shaft until it locks using the Seal Installer - Inner Output Shaft :T10399 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

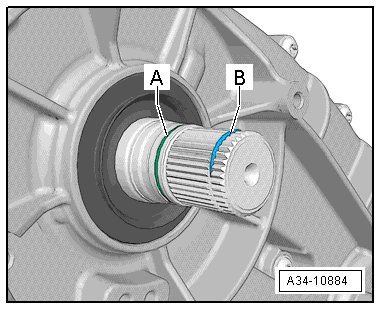

-- Replace the O-ring -A- and the circlip -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the front driveshaft. Refer to FRONT DRIVESHAFT, REMOVING AND INSTALLING .

-- Fill the transmission fluid and check the fluid level in the transfer case. Refer to TRANSFER CASE, CHECKING TRANSMISSION FLUID LEVEL .
