Front Output Flange/Driveshaft Seal, Replacing, Transfer Case With Flange: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

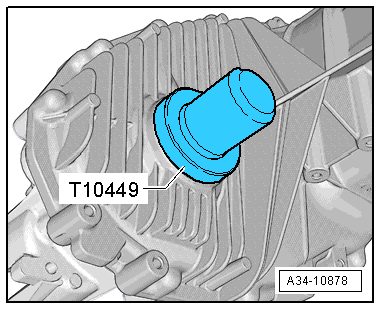

-- Lightly coat the outer circumference of the new shaft seal with oil.

-- Fill the space between the sealing and dust lip halfway with Sealing Grease :G 052 128 A1 .

-- Drive in new shaft seal as far as stop without tilting it.

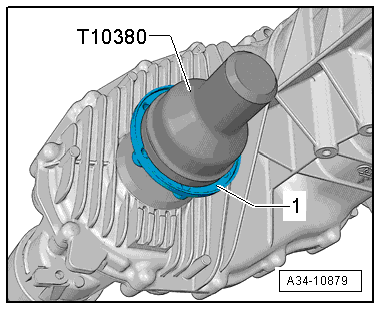

-- Warm the flange shaft -1- up to approximately 80 °C (176 °F) using the Inductive Heater :VAS 6414 and remove it using the Seal Installer - Hollow Shaft :T10380 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

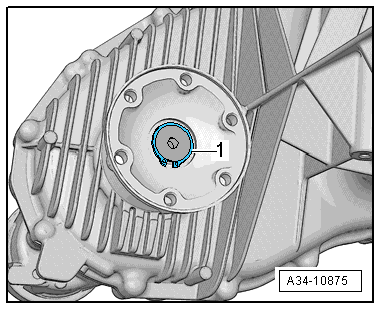

-- Install circlip -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the front driveshaft.
