Fastener Tightening Specifications
WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
| Components | Fastener Size | Nm |
|---|---|---|

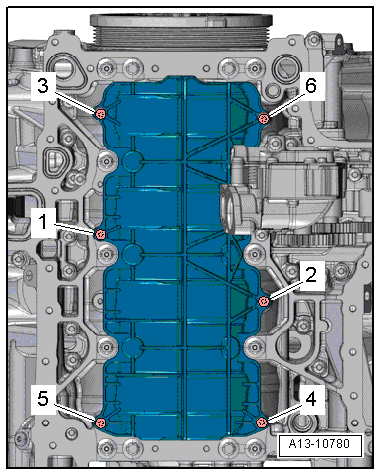

| Baffle plate - Tightening Specifications and sequence | - | Figure |
| Bracket for generator 5 | ||
| - Bolt | - | 22 |
| - Bolt | - | 46 |
| Connecting rod bearing cap 1, 3 | - | 40 + 120° |
| Drive plate 1 | - | 60 + 90° |
| Guide frame Tightening Specifications and sequence | - | Figure |
| Guide tube for oil dipstick to engine | - | 9 |
| Idler roller for the ribbed belt | - | 22 |
| Oil spray jet 2 | - | 9 |
| Spur gear unit, Tightening Specifications and sequence | - | Figure |
| Tensioning element for the ribbed belt 4 | ||
| - Bolt | - | 22 |
| - Bolt | - | 55 |
| Vibration damper, Tightening Specification and sequence | - | Figure |
|
||
