Spur Gear Drive, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

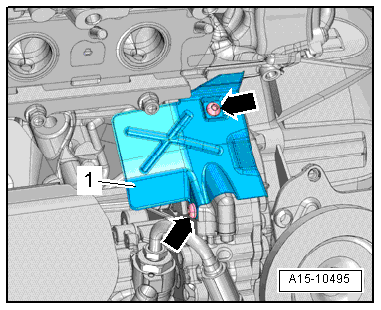

Fig 1: Identifying Bolts -Arrows- And Heat Shield -1-

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission subassembly removed; engine and transmission separated. Refer to ENGINE AND TRANSMISSION, SEPARATING .
Engine secured with Scissor Lift Table - Q7 Set Articulated Joint Support:VAS6131/13-7 .

-- Remove the bolts -arrows- and the heat shield -1-.

-- Remove the hose clamp on the Air Conditioning (A/C) compressor drive dust cap -arrow-.

Fig 2: Identifying Dust Cap -Arrow- On End Of Shaft For A/C Compressor Drive Spur Gear

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Vehicles with hydraulic power steering: Disconnect the power steering pump from the guide frame.

-- Remove the power take-off drive chain. Refer to POWER TAKE-OFF DRIVE CHAIN, REMOVING AND INSTALLING .

-- Loosen and remove the bolts -1 to 5- in a diagonal sequence.

Fig 3: Identifying Spur Gear Unit, Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- First loosen the spur gear unit from the bonding and then remove it.

-- Remove the oil pump input shaft -arrow-.

Fig 4: Drive Shaft For Oil Pump

Courtesy of AUDI OF AMERICA, LLC
