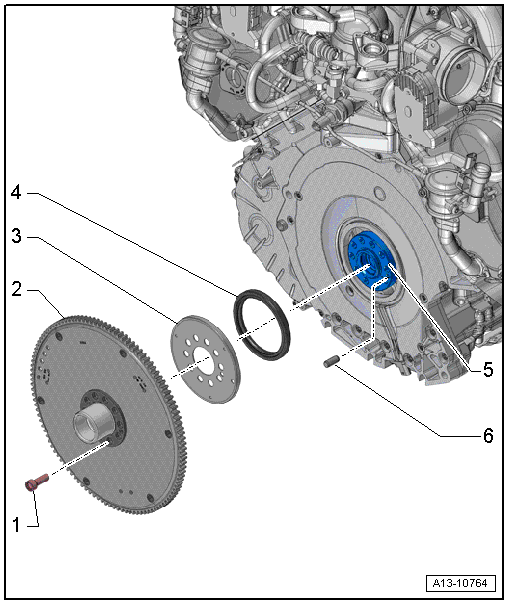

Overview - Drive Plate
WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For assembly work, secure the engine on the Engine And Transmission Holder:VAS6095 . Refer to ENGINE, SECURING ON ENGINE AND TRANSMISSION HOLDER .
- Bolt
- 60 Nm +90° turn
- Replacing
- Drive Plate
- With The Bearing Flange
- Check The Running Surfaces On The Bearing Flange And The Clutch Module Holes For Cracks And Signs Of Wear.
- Removing And Installing. Refer To DRIVE PLATE, REMOVING AND INSTALLING .
- Sensor Wheel
- For Engine Speed Sensor -G28-
- Shaft Seal
- For The Crankshaft On The Transmission Side
- Replacing. Refer to CRANKSHAFT SEAL, REPLACING, TRANSMISSION SIDE .
- Crankshaft
- Alignment Pin
