Overview - Ribbed Belt Drive: Notes
WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

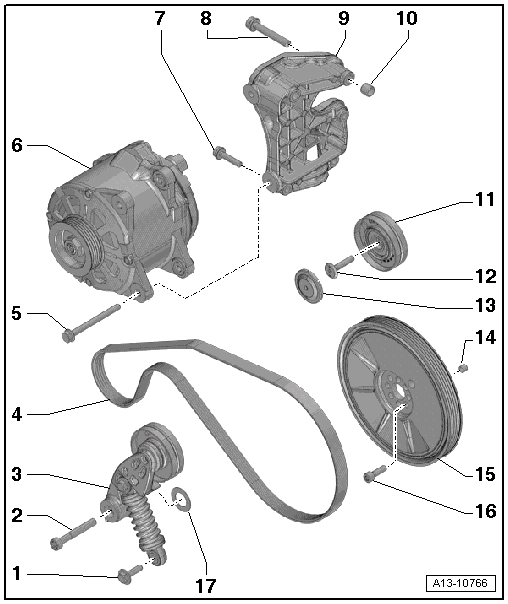

- Bolt
- 22 Nm
- Bolt
- 55 Nm
- Tensioner
- For The Ribbed Belt
- Removing And Installing. Refer To RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
- Ribbed Belt
- Check For Wear
- Before Removing, Mark The Direction Of Rotation Using Chalk Or A Felt-Tip Pen.
- Removing And Installing. Refer To RIBBED BELT, REMOVING AND INSTALLING .
- Do Not Kink
- When Installing, Make Sure It Is Seated Correctly On The Ribbed Belt Pulleys
- Bolt
- Tightening Specification. Refer to GENERATOR - SPECIFICATIONS (OVERVIEW) .
- Generator
- Removing And Installing. Refer To GENERATOR, REMOVING AND INSTALLING .
- Bolt
- 22 Nm
- Bolt
- 46 Nm
- Bracket
- For The Generator
- Removing and installing. Refer to AUXILIARY COMPONENTS BRACKET, REMOVING AND INSTALLING .
- Alignment Sleeve
- For Generator Bracket
- Quantity: 2
- Idler Roller
- For The Ribbed Belt
- With bolt -12-
- Bolt
- 22 Nm
- Cap
- For The Idler Roller
- Alignment Sleeve
- For The Vibration Damper
- Vibration Damper
- With Ribbed Belt Pulley
- Removing And Installing. Refer To VIBRATION DAMPER, REMOVING AND INSTALLING .
- Bolt
- Replacing
- Tightening Specification And Sequence Figure.
- Thrust Washer
