Right Engine Mount, Removing And Installing: Removing

Fig 1: Engine Cover (4.2L Engine)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover -arrows-.

-- Remove the generator. Refer to GENERATOR .

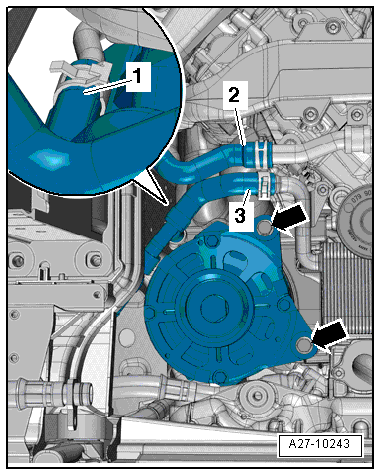

Fig 2: Removing Generator

Courtesy of AUDI OF AMERICA, LLC

-- Install the Engine Support Bridge:10-222A  with the Engine Support - Supplement Kit Adapter 6:T40093/6  on the left and right suspension strut tower, as shown in the illustration.

Fig 3: Installing 10 - 222 A With T40093/6 On Left And Right Strut Towers

Courtesy of AUDI OF AMERICA, LLC

-- Engage the Engine Support Bridge - Spindle:10-222A /11  on the right engine lifting eye.

-- Lightly pretension the engine using the spindle.

-- Remove the nut -arrow- on the right longitudinal member and free up the Ground (GND) wires.

Fig 4: Identifying Ground Wire Nut -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect and free up the connector -2- from the Oil Level Thermal Sensor -G266-.

Fig 5: Disconnecting And Free Up Connector -2- From Oil Level Thermal Sensor -G266-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector -2- on the Right Electrohydraulic Engine Mount Solenoid Valve -N145- and free up.

Fig 6: Identifying Engine Mount Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right engine support retaining plate bolts -1, 4- and -arrows-.

-- Free up the electrical wiring harness located on the right engine mount retaining plate -3-.

-- Move the engine mount retaining plate to the side.

-- Lift the engine using the Engine Support Bridge - Spindle:10-222A/11  -1- to dimension -a-.

Fig 7: Identifying Engine Support Bridge - Spindle 10 - 222 A /11

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = approximately 20 mm.

-- Remove the right engine mount.
