Left Engine Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Battery

Courtesy of AUDI OF AMERICA, LLC

-- Position the front wheels so they are straight.

CAUTION:

Danger of causing damage to electronic components.

Complete the steps for disconnecting the battery.

-- Disconnect the battery Ground (GND) cable -2-. Refer to BATTERY .

-- Remove the engine cover -arrows-.

Fig 2: Engine Cover (4.2L Engine)

Courtesy of AUDI OF AMERICA, LLC

-- Install the Engine Support Bridge:10-222A with the Engine Support - Supplement Kit Adapter 6:T40093/6 on the left and right suspension strut tower, as shown in the illustration.

Fig 3: Install 10- 222 A With Adapters T40093/6 On Left And Right Suspension Strut Domes

Courtesy of AUDI OF AMERICA, LLC

-- Engage the Engine Support Bridge - Spindles:10-222A/11 on the engine lifting eyes.

-- Lightly pretension engine with spindles.

-- Remove the noise insulation -1 and 2-. Refer to NOISE INSULATION .

Fig 4: Automatic Transmission Fluid Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right front wheels.

-- Remove the left and right front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the left and right drive axles from the transmission flange shaft. Refer to DRIVE AXLE .

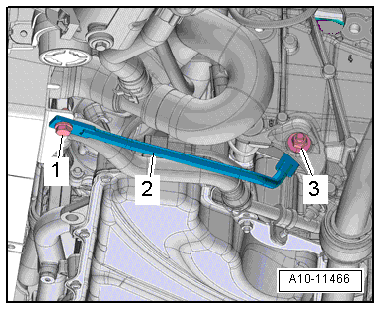

-- Remove the left and right bolt -1- and nut -3- and the brace -2-.

Fig 5: Identifying Left And Right Bolt -1- And Nut -3- And Brace -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -arrow- on the right longitudinal member and free up the GND wires.

Fig 6: Identifying Ground Wire Nut -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- If installed: Disconnect the connector -1- Headlamp Range Control Sensor 1 -G233- electrical sensor -arrow- and free up electrical wiring.

Fig 7: Disconnect Electrical Connector On Left Front Level Control System Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right stabilizer bar bolt -1-.

Fig 8: Identifying Left And Right Stabilizer Bar Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -2 and 3-.

Vehicles with Hydraulic Power Steering

Fig 9: Locating Power Steering Hydraulic Line

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- from the power steering hydraulic line.

NOTE:

Ignore -arrows-.

Vehicles with Electro-Mechanical Power Steering

Fig 10: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

-- Release the safety catch -arrow-, push the retainer down and disconnect the connector from -2- from the Power Steering Control Module -J500-.

-- Disconnect the connector -1-.

-- Free up the wiring harness.

Continuation for All Vehicles

Fig 11: Locating Steering Column Universal Joint Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the steering intermediate shaft from the steering gear push them upward. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

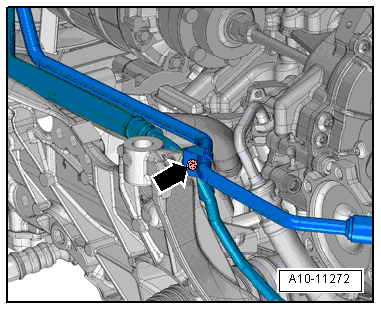

-- Remove the bolt -arrow- from the ATF pipes.

Fig 12: Identifying Bolt From ATF Pipes

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -arrows- and leave the heat shield -1- in its installed position.

Fig 13: Locating Heat Shield And Bolts

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Hydraulic Power Steering

Fig 14: Disconnect Connector From Servotronic Solenoid Valve

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the Servotronic Solenoid Valve -N119- and free up the electric wire.

NOTE:

Ignore item -2-.

-- Free up the power steering hydraulic fluid hose on the left side of the subframe.

Continuation for All Vehicles

-- Free up the wires on the right side of the subframe.

-- Disconnect the connector -3- from the Left Electrohydraulic Engine Mount Solenoid Valve -N144-.

Fig 15: Identifying Bolt For Left Engine Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1, 4- and -arrows-, the retaining plate -2- for the left engine mount remains in the installation position.

-- Disconnect the connector -2- from the Right Electrohydraulic Engine Mount Solenoid Valve -N145-.

Fig 16: Identifying Engine Mount Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right engine mount bolt -1-.

NOTE:

Ignore items -3 and 4- and -arrow-.

-- Support the subframe using Engine and Gearbox Jack:VAS6931 as shown in the illustration.

Fig 17: Identifying Support Subframe Using V.A.G 1383

Courtesy of AUDI OF AMERICA, LLC

-- Mark the location of the subframe to the longitudinal members using a felt-tip pen.

Fig 18: Identifying Subframe Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right subframe bolts -1, 2 and 3- in a diagonal sequence.

CAUTION:

The suspension components could be damaged.

Do not rest the vehicle on its wheels if the subframe mount, the steering gear or the subframe crossbrace are not installed correctly.

-- Lower the subframe using the Engine and Gearbox Jack:VAS6931 just enough so that the left engine mount can be removed, while at the same time paying attention to the clearance for the left hydraulic oil hoses and the right electrical wires.

-- Remove the left engine mount.
