Crankcase Ventilation With A Non-Detachable Hose

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the clamps -arrows-, remove the air guide pipe and then move it to the side with the hose -1- still connected.

-- Repeat the procedure on the other side of the vehicle.

Continuation for All Vehicles

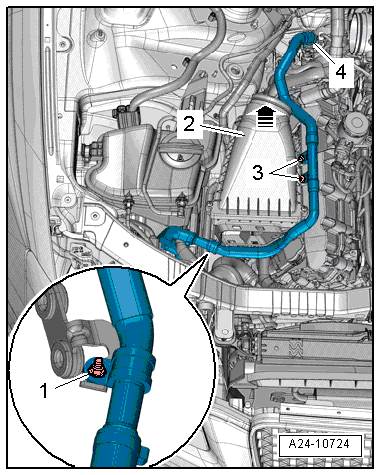

Fig 1: Pulling Back Of Air Filter Housing -2- From Bracket -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3-.

-- Press the release button and remove the hose -4- from the Secondary Air Injection (AIR) combination valve.

-- Pull the back of the air filter housing -2- from the bracket -arrow- and remove it.

-- Remove the nut -1- and move the hose to the side.

-- Repeat the procedure on the other side of the vehicle.

-- Remove the nuts and bolt -arrows- and the air filter housing bracket -1-.

Fig 2: Identifying Air Filter Housing Bracket Components

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the procedure on the other side of the vehicle.

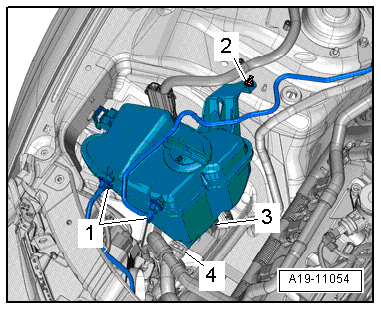

-- Disconnect the connector -3- from the Engine Coolant Level Warning Switch -F66-.

Fig 3: Identifying Connector -3-, Clip -1-, Clamp -4- & Nut -2-

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clip -1-, loosen the clamp -4- and remove the coolant hoses.

-- Remove the nut -2- and the coolant reservoir.

-- Lift the clamp -1-, loosen the clamps -2 and 3- and remove the coolant hose.

Fig 4: Identifying Clamp -1-, Clamps -2 And 3-

Courtesy of AUDI OF AMERICA, LLC

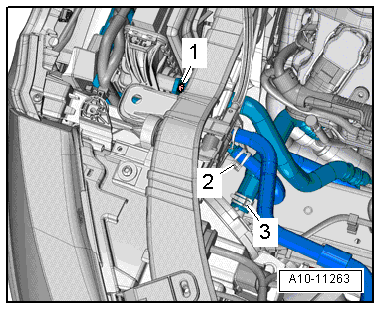

-- Loosen the clamp -arrow- and remove the right coolant hose from the longitudinal member.

Fig 5: Identifying Clamp -Arrow-

Courtesy of AUDI OF AMERICA, LLC

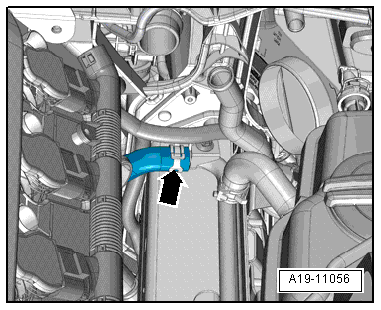

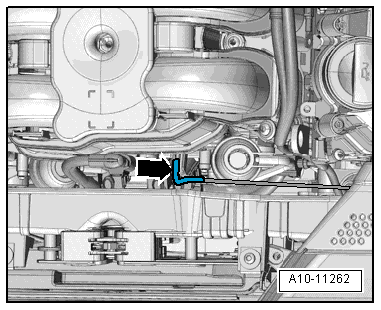

-- Remove the front vacuum hose -arrow- from the intake manifold.

Fig 6: Identifying Front Vacuum Hose -Arrow-

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Hydraulic Power Steering

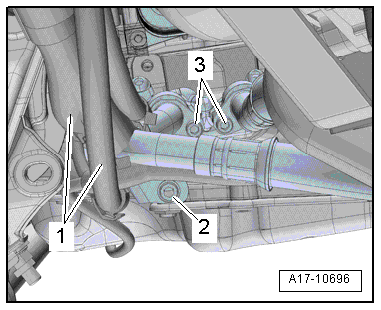

Fig 7: Identifying Bolt -1-, Power Steering Hydraulic Fluid Hose -2- & Clamp -3-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth underneath to catch the draining hydraulic fluid.

-- Remove the power steering hydraulic fluid hose -2-.

Continuation for All Vehicles

NOTE:

Catch any leaking ATF with a cloth.

-- Remove the bolt -1- and pull the ATF pipe off the radiator.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

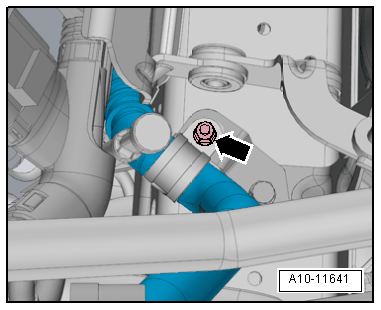

-- Loosen the clamp -3- and remove the left coolant hose from the longitudinal member.

-- If installed: Remove the nut -arrow- and free up the ATF line.

Fig 8: Identifying Nut -Arrow- And Free Up ATF Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3-.

Fig 9: Identifying Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clips -2- from the mount and remove the plenum chamber cover -1-.

-- Release the retainer -arrow A- and open the cover -arrow B-.

Fig 10: Opening Terminal Box Cover

Courtesy of AUDI OF AMERICA, LLC

Wire Junction Version 1

Fig 11: Identifying Nuts, Bolts & Connectors

Courtesy of AUDI OF AMERICA, LLC

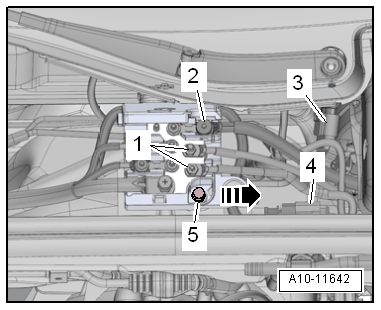

-- Remove the nuts -1 and 2- for the electrical wires.

-- Disconnect the connectors -3 and 4-.

-- Remove the bolt -5- and the Terminal 30 Wire Junction 2 -TV22- from the tower brace -arrow-.

Wire Junction Version 2

Fig 12: Removing Bolt -5- And Terminal 30 Wire Junction 2 -TV22- From Tower Brace -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -3 and 4-.

-- Remove the bolt -5- and the Terminal 30 Wire Junction 2 -TV22- from the tower brace -arrow-.

Continuation for All Vehicles

Fig 13: Release Retainers From Wheel Housing Side Using A 5.5 Mm Open End Wrench

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers from the wheel housing side using a 5.5 mm wrench -1- and remove the wiring bushing -2- upward.

-- Free up the wiring harness -3- to the generator and starter using the Pry Lever:80-200 .

-- Open the catch in direction of -arrow-, free up the wiring harness and open the wiring duct -1-.

Fig 14: Freeing Up Wiring Harness And Open Wiring Duct

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and tilt -arrow A- the washer fluid reservoir filler neck -2- upward slightly.

Fig 15: Identifying Filler Neck With Filler Tube From Washer Fluid Reservoir And Opening In Body

Courtesy of AUDI OF AMERICA, LLC

-- Remove the filler neck with the filler tube from the washer fluid reservoir and the opening in the body -arrow B-.

-- Remove the bolts -1- and nuts -2- and the tower brace -3-. The procedure for doing this depends on the version.

Fig 16: Identifying Bolts, Nuts And Tower Brace

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the engine compartment E-box cover.

Fig 17: Identifying E-Box Bolts & Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and free up the wire.

-- Release the retainers in direction of -A arrows- and remove the Engine Control Module (ECM) in direction of -arrow B-.

Fig 18: Engine Control Module (ECM)

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- if applicable.

Fig 19: Disconnect Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -4-.

-- Remove the nut -3- from the wire.

-- Release the retainers in direction of -arrow- and remove the relay carrier with the fuse holder -1-.

-- Disengage the engine wiring harness at the engine compartment E-box and free it up.

-- Open the retainers in direction of -arrows A- and remove the wiring harness bushing -2- -arrow B-.

Fig 20: Disengaging Catches -Arrows A- And Remove Upper Part Of Line Pass-Through -2- Upward -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Ground (GND) pin -1- and free up the GND wire.

-- Lay the wiring harness on the engine and secure the ECM so that it cannot fall.

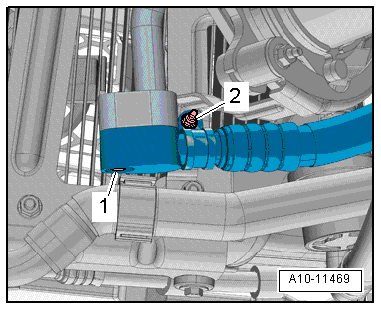

-- Loosen the clamp -2- and remove the coolant hose.

Fig 21: Identifying Clamp -2- And Remove Coolant Hose

Courtesy of AUDI OF AMERICA, LLC

-- Push the coolant hoses with hose guide into the engine compartment.

NOTE:

Ignore item -1-.

CAUTION:

Risk of damaging refrigerant lines and hoses.

Do not stretch, kink or bend refrigerant lines and hoses.

-- Remove the bolt -1-, the nut -2- and the refrigerant line.

Fig 22: Identifying Bolt -1-, Nut -2- And Refrigerant Line

Courtesy of AUDI OF AMERICA, LLC

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

-- Remove the bolt -2-.

Fig 23: Identifying Bolts & Refrigerant Lines To A/C Compressor

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the refrigerant line from the compressor.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

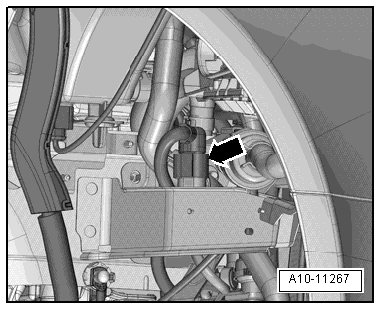

-- Remove the nut -arrow- on the right longitudinal member and free up the GND wires.

Fig 24: Identifying Ground Wire Nut -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Place the Used Oil Collection and Extraction Unit: VAG1782 under the engine.

Fig 25: Identifying Free Up Wires -1-, Remove Bolts -2 And 3-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wires -1-.

-- Remove the bolts -2 and 3- and the oil lines.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

-- Disconnect the connectors and free up the wires.

Fig 26: Disconnecting Connectors And Free Up Wires

Courtesy of AUDI OF AMERICA, LLC

Oil Level Thermal Sensor -G266-
Right Electrohydraulic Engine Mount Solenoid Valve -N145-

Audi RS4/RS5 Coupe

Fig 27: Identifying Connector -Arrow- From Secondary Air Injection Pump Motor -V101-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -arrow- for the Secondary Air Injection Pump Motor -V101-.

-- Disconnect the connector -3- and free up the wire.

Fig 28: After-Run Coolant Pump -V51-, Tightening Specifications

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray:VAS6208 under engine.

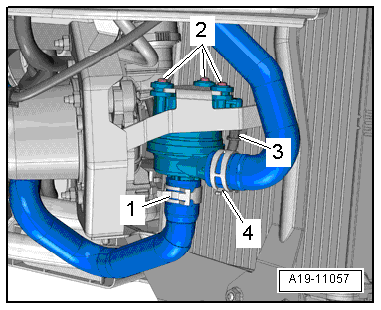

-- Loosen the hose clamp -1- and remove the coolant hose from the After-Run Coolant Pump -V51-.

NOTE:

Ignore items -2 and 4-.

Audi RS5 Cabrio

Fig 29: Identifying After-Run Coolant Pump (Audi RS5 Cabrio)

Courtesy of AUDI OF AMERICA, LLC

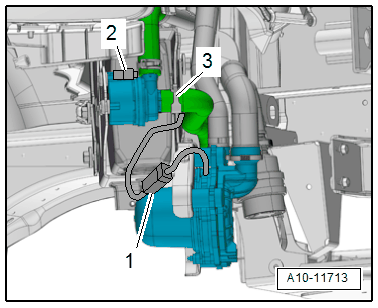

-- Disconnect the connectors -1 and 2- and free up the wires.

NOTE:

Use a cloth to catch any leaking coolant.

-- Loosen the hose clamp -3- and remove the coolant hose.

Continuation for All Vehicles

Fig 30: Identifying Coolant Fan Electrical Connectors -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the coolant fan connectors -1 and 2-, to do this, push the clamp to the rear in direction of -arrow- and push the release down.

-- Free up the wiring harness.

-- Disconnect the connectors -arrow- at the left and right on the front speed sensors.

Fig 31: Identifying Speed Sensor Connector

Courtesy of AUDI OF AMERICA, LLC

-- If installed: Disconnect the connector -1- Headlamp Range Control Sensor 1 -G233- electrical sensor -arrow- and free up electrical wiring.

Fig 32: Disconnect Electrical Connector On Left Front Level Control System Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Free up the electrical connector -2- on the bracket by pulling the retainer back in direction of -arrow A- and turning the connector approximately 90° in direction of -arrow B-.

Fig 33: Free Up Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Free up the electrical wiring -3- and brake line -4- on the bracket.

-- Remove the bolts -1- and secure the brake caliper, with the brake line still connected, inside the wheel housing using wire.

CAUTION:

Risk of damaging brake pistons.

Do not operate brake pedal with brake caliper removed.

-- Remove the nut -2- and the bolt -1-.

Fig 34: Disconnecting Upper Control Arm From Wheel Bearing Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper control arm upward from the wheel bearing housing in direction of -arrows-.

-- Repeat the procedure on the other side of the vehicle.

-- Remove the left and right stabilizer bar bolt -1-.

Fig 35: Identifying Left And Right Stabilizer Bar Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right nuts -3-.

NOTE:

The bolt -2- will be removed later.

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

Fig 36: Locating Power Steering Hydraulic Line

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The suspension components could be damaged.

Do not rest the vehicle on its wheels if the subframe mount, the steering gear or the subframe crossbrace are not installed correctly.

-- Remove the steering intermediate shaft from the steering gear push them upward. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

Fig 37: Locating Steering Column Universal Joint Bolt

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Electro-Mechanical Power Steering

Fig 38: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

-- Release the safety catch in direction of -arrow-, push the retainer down and disconnect the connector from -2- from the Power Steering Control Module -J500-.

-- Free up the wiring harness.

NOTE:

Ignore item -1-.

Continuation for All Vehicles

Fig 39: Locating Heat Shield And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -arrows- and the heat shield -1-.

-- Remove the drive axle. Refer to DRIVE AXLE or STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

Fig 40: Counter Hold Rear Driveshaft Using Counterhold Tool T10172 And Adapters T10172/5

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air guide -A-.

Fig 41: Air Guide

Courtesy of AUDI OF AMERICA, LLC
