Engine And Transmission, Separating: Procedure

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Oxygen Sensors

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission assembly removed and placed on the Scissor Lift Table:VAS6131B .

-- Remove the left and right drive axles from the transmission flange shaft.

-- Remove the connectors from the bracket, disconnect them and then free up the wires.

2 - for Heated Oxygen Sensor 2 -G108-

3 - for Oxygen Sensor 2 after Catalytic Converter -G131-

NOTE:

Ignore items -1 and 4-.

-- Remove the bolt -arrow- and the oil dipstick tube -1-.

Fig 2: Identifying Bolt -Arrow- And Oil Dipstick Tube -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-, press the tab off the transmission and tilt it back in direction of -arrow-.

Fig 3: Identifying Bolt, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts in the following sequence -6 to 1- and then remove the exhaust manifold together with the catalytic converter and left front muffler.

Fig 4: Identifying Left Exhaust Manifold, Tightening Specifications And Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the drive axle heat shield.

Fig 5: Identifying Bolts And Left Drive Axle Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2-.

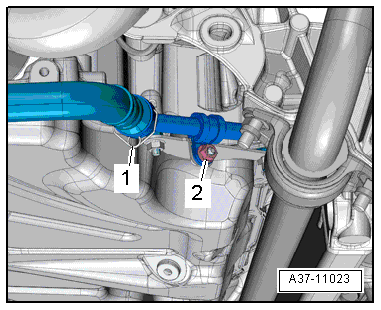

Fig 6: Identifying ATF Pipe Clamp Nut

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

NOTE:

Catch any leaking ATF with a cloth.

Vehicles through 05/2010

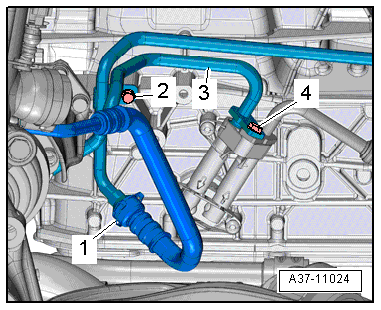

Fig 7: Identifying ATF Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clamp -1- and the ATF pipe.

-- Remove the bolt -4- and then remove the ATF pipe -3- from the transmission and move it to the side.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

NOTE:

Ignore item -2-.

-- Remove the bolt -1-.

Fig 8: Identifying ATF Pipe Filter

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2- and -arrow-.

Vehicles from 06/2010

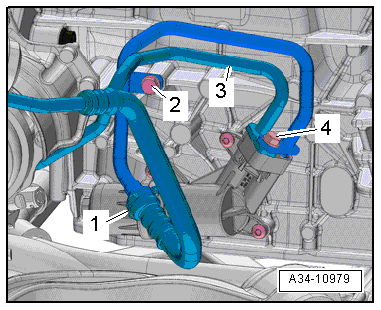

Fig 9: Identifying Clamp -1-, Bolt -4- And Then Remove ATF Pipe -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clamp -1- and the ATF pipe.

-- Remove the bolt -4- and then remove the ATF pipe -3- from the transmission and move it to the side.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122 .

NOTE:

Ignore item -2-.

Vehicles with Electro-Mechanical Power Steering:

Fig 10: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the Power Steering Control Module -J500-.

-- Free up the wiring harness.

NOTE:

Ignore item -2- and -arrow-.

Vehicles with Hydraulic Power Steering

Fig 11: Disconnect Connector From Servotronic Solenoid Valve

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the Servotronic Solenoid Valve -N119-, if equipped.

Continuation for All Vehicles

-- Disconnect the connector -2- from the Engine Speed Sensor -G28-.

-- Free up the wires.

-- Disconnect the connector -arrow- and free up the wire.

Fig 12: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of destroying the Transmission Control Module (TCM) (Mechatronic) with static discharge.

Do not touch contacts in transmission connector with hands.

-- To discharge static electricity, touch the transmission housing (without wearing gloves).

-- Turn the twist lock counter-clockwise in direction of -arrow- and disconnect the connector from the transmission.

Fig 13: Disconnecting Connector On Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness on the transmission.

-- Remove electrical connectors from bracket and disconnect:

Fig 14: Identifying Oxygen Sensors

Courtesy of AUDI OF AMERICA, LLC

2 -for Oxygen Sensor after Three Way Catalytic Converter -G130-

3 - for Heated Oxygen Sensor -G39-

NOTE:

Ignore items -1 and 4-.

-- Remove the bolt -2-.

Fig 15: Identifying Catalytic Converter

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

-- Remove the bolt -arrow-.

Fig 16: Identifying Right Exhaust Manifold, Tightening Specifications and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts in the following sequence -6 to 1- and then remove the exhaust manifold together with the catalytic converter and right front muffler.

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

Fig 17: Identifying Transmission Lower Cover

Courtesy of AUDI OF AMERICA, LLC

-- Position the Crankshaft Turning Tool:T40257 onto the Wrench - 21mm:T40263 .

Fig 18: Attaching T140257 To T140263

Courtesy of AUDI OF AMERICA, LLC

-- Attach the Crankshaft Turning Tool:T40257 to the bolts on the vibration damper.

The semi-round countersink -arrow A- on the Crankshaft Turning Tool:T40257 must face the semi-round countersink -arrow B- on the vibration damper.

NOTE:

Ignore the notch on the Crankshaft Turning Tool:T40257 .

-- Counterhold the crankshaft to loosen the clutch module bolt using the Crankshaft Turning Tool:T40272 and the Wrench - 21mm:T40263 .

NOTE:

When mounting, turn the crankshaft only in the direction of engine rotation -arrow-.

-- Remove the 6 clutch module bolts -arrow- by turning the crankshaft 60° in the direction of engine rotation.

Fig 19: Identifying Clutch Module First Bolt Installation Location

Courtesy of AUDI OF AMERICA, LLC

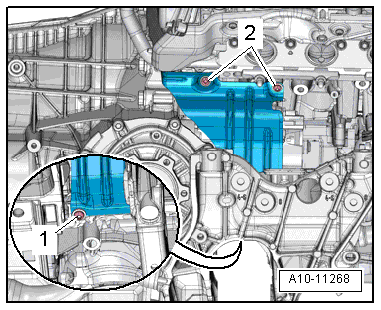

-- Remove the bolt -1- and push the starter heat shield slightly to the side.

Fig 20: Identifying Bolt And Push Starter Heat Shield To Side, Removal

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Equip the Scissor Lift Table:VAS6131B with the Scissor Lift Table - Audi Set:VAS6131/10 and Scissor Lift Table - A8 Set:VAS6131/11 , and Scissor Lift Table - Q7 Set Articulated Joint Support:VAS6131/13-7 as follows:

Fig 21: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The other attachments remain unchanged.

Platform Coordinates	Components from the Scissor Lift Table - Audi Set:VAS6131/10 , Scissor Lift Table - A8 Set:VAS6131/11 and Scissor Lift Table - Q7 Set Articulated Joint Support:VAS6131/13-7
D	/13-7
C10	/10-1	/10-3	/10-5	/11-4
F10	/10-1	/10-3	/10-5	/11-4

-- Secure the Scissor Lift Table - Q7 Set Articulated Joint Support:VAS6131/13-7 to the engine in the threaded hole with a M10 x 65 bolt on the front to the right, as shown in the illustration.

Fig 22: Identifying VAS 6131/13-7

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the Scissor Lift Table - Q7 Set Articulated Joint Support:VAS6131/13-7 to 20 Nm on the scissor lift table.

-- Attach the mounting elements from the Scissor Lift Table - Audi Set:VAS6131/10 and Scissor Lift Table - A8 Set:VAS6131/11 on the front of the transmission, as shown in illustration.

Fig 23: Attaching Mounting Elements From VAS 6131/10 And VAS 6131/11 At Front Of Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Turn the left and right spindles until the Scissor Lift Table - A8 Set - Mounting :VAS6131/11-4 are firmly touching the transmission.

-- Attach mounting element base plates to Scissor Lift Table:VAS6131B and tighten to 20 Nm.

-- Remove the starter bolts -1 and 2-.

Fig 24: Checking If Alignment Sleeves -A- For Centering Engine/Transmission Are In Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

-- Press the starter off the transmission and leave it in the installation position.

-- Remove the remaining bolts -3 through 10- that attach the engine to the transmission.

NOTE:

Vehicles with electro-mechanical power steering: Counterhold the nut next to the bolt -7-.

Ignore item -A-.

-- Loosen the clamping screws -1- on sides of Scissor Lift Table:VAS6131B and pull the rear table top with the transmission toward rear -arrow-.

Fig 25: Locating Bolts -1- On Sides Of VAS 6131 A And Pull Rear Table Plate With Transmission Toward Rear -Arrow-
