Camshaft Position Sensor -G40- / -G163-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

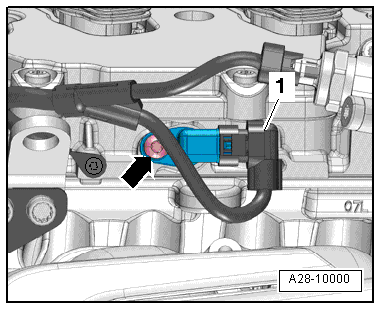

Fig 1: Identifying Camshaft Position Sensor & Connector
GWWA28-10000Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -arrow- and the camshaft position sensor.
