Camshaft Position Sensor -G300- / -G301-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Air Filter Housing Bracket Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the affected air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the nuts and bolts -arrows- to then remove the air filter housing bracket -1-.

Camshaft Position Sensor 4 -G301-

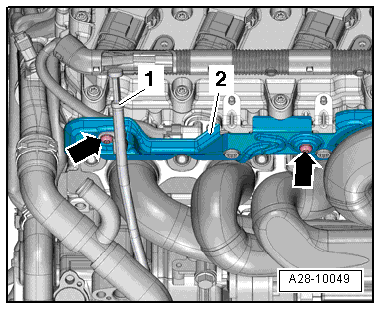

Fig 2: Identifying Bolts & Oil Dipstick Tube

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the oil dipstick tube.

-- Gently bend the heat shield -2- slightly to the side.

Camshaft Position Sensor 3 -G300-

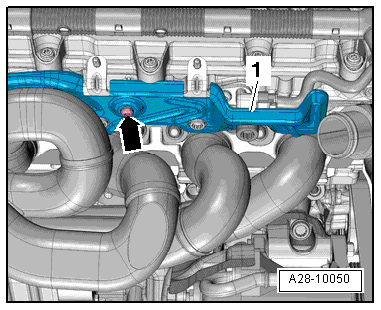

Fig 3: Identifying Heat Shield & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Gently bend the heat shield -1- slightly to the side.

-- Disconnect the connector -2-.

Fig 4: Identifying Camshaft Position Sensor And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the camshaft position sensor.
