EGR Control Valve: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

NOTE: Use new O-rings and gaskets.

Tightening torque:

22 N.m (2.2 kgf-m, 16.2 ft-lb)

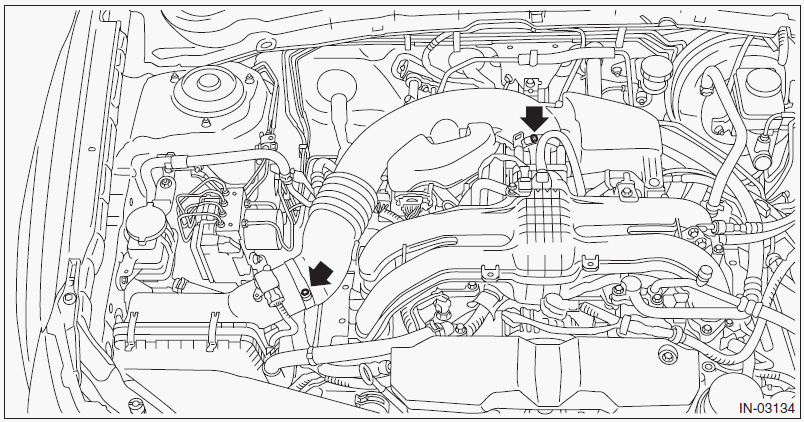

Fig 1: Locating Water Pipe Assembly Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 2: Identifying Air Intake Boot Clamps

Courtesy of SUBARU OF AMERICA, INC.
