Section 118 (Emission Control Systems (Aux. Emission Control Devices) (H4DO)): Canister: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while being careful of the following.

Connect the quick connector as shown in the figure.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, securely insert the pipe all the way before locking the retainer.
- If it is not possible to perform the push lock operation of the retainer, recheck whether the pipe is securely inserted.
- Make sure that the quick connector is securely connected.

  Fig 1: Connecting Quick Connector
  Courtesy of SUBARU OF AMERICA, INC.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 2: Identifying Retainer Mounting Bolt (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Retainer Mounting Bolt (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

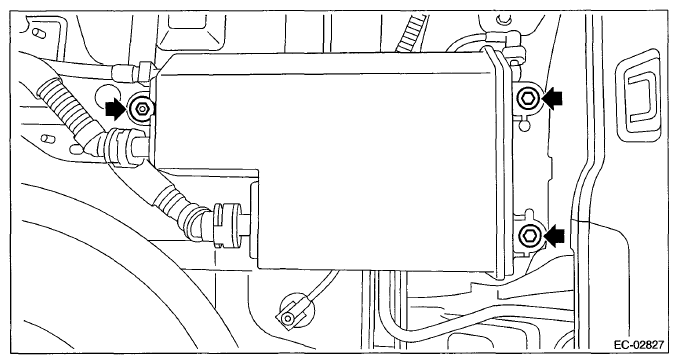

Fig 4: Locating Valve Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 5: Locating Valve Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 6: Locating Valve Bracket Mounting Bolts (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Locating Valve Bracket Mounting Bolts (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
