Front Coolant Pipes In The Center, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

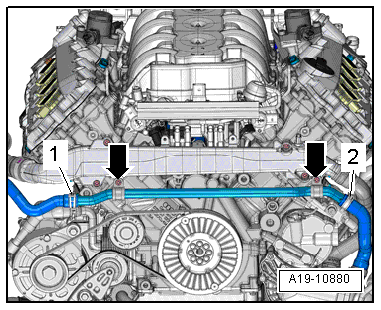

Fig 1: Removing Front Coolant Pipe In Center

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Radiator With Fan Shroud. Refer To RADIATOR, REMOVING AND INSTALLING .

-- Remove The Bolts -arrows-.

-- Remove The Front Upper Coolant Pipe In The Center From The Coolant Hoses By Loosening The Hose Clamps -1 And 2-.
