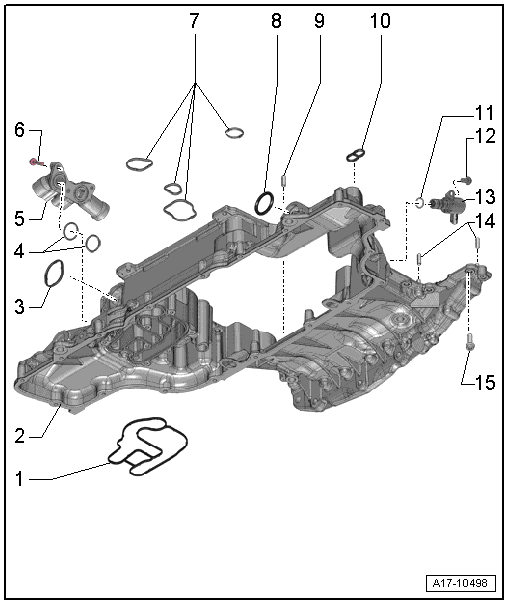

Overview - Oil Pan Upper Section: Notes
WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Replacing
- Oil Pan Upper Section
- Removing and installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
- Seal
- Replacing
- Seals
- Replacing
- Engine Oil Temperature Regulator
- Bolt
- 9 Nm
- O-Rings
- Replacing
- O-Ring
- Replacing
- Alignment Sleeve
- Seal
- Replacing
- O-Ring
- Replacing
- Bolt
- 9 Nm
- Oil Pressure Regulation Valve -N428-
- Removing and installing. Refer to OIL PRESSURE REGULATION VALVE -N428-, REMOVING AND INSTALLING .
- Alignment Sleeves
- Bolt
- Replacing
- Tightening Specification and sequence. Refer to Figure.
