Oil Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Drive Shaft For Coolant Pump From Oil Pump

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission subassembly removed; engine and transmission separated. Refer to ENGINE AND TRANSMISSION, SEPARATING .
Engine secured with Scissor Lift Table - Q7 Set Articulated Joint Support:VAS6131/13-7 .

-- Remove the spur gear unit. Refer to SPUR GEAR DRIVE, REMOVING AND INSTALLING .

-- Remove the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the coolant pump input shaft -arrow- from the oil pump.

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the engine and leave it there for the following steps.

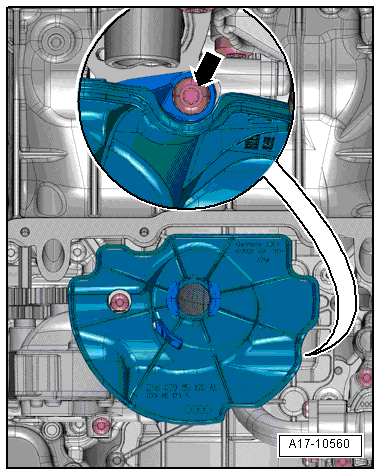

-- Remove the bolt -arrow- and remove the intake tube.

Fig 2: Identifying Bolt -Arrow- And Remove Intake Tube

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Oil Escapes When Removing Oil Pipes.

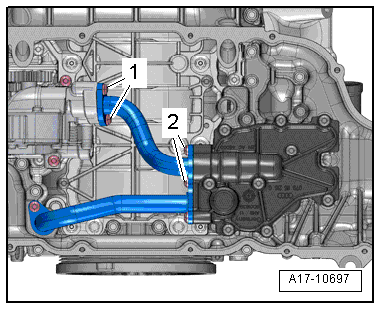

Fig 3: Identifying Bolts -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- and then turn the oil pipe downward and remove it.

-- Remove the bolts -arrows- and remove the oil pump.

Fig 4: Identifying Oil Pump & Bolts

Courtesy of AUDI OF AMERICA, LLC
