Oil Pan Upper Section, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

The engine is removed and secured to the engine/transmission holder. Refer to ENGINE, SECURING ON ENGINE AND TRANSMISSION HOLDER .

-- Remove the generator bracket. Refer to AUXILIARY COMPONENTS BRACKET, REMOVING AND INSTALLING .

-- Remove the oil pump. Refer to OIL PUMP, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the Oil Pressure Regulation Valve -N428-.

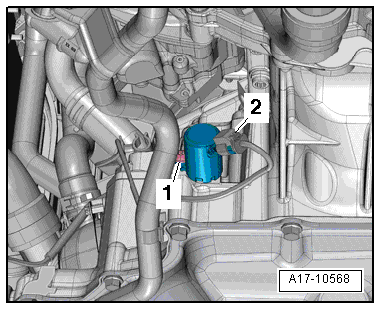

Fig 1: Installation Location Oil Pressure Regulation Valve -N428-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore Item -1-.

-- Remove the bolts -1, 3, 4 and 5- and the cover plate.

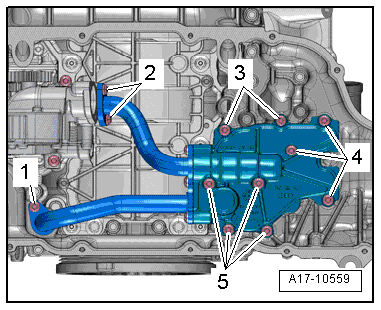

Fig 2: Identifying Bolts -1, 3, 4 And 5- And Cover Plate

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Loosen and remove the bolts -1 to 7- in a diagonal sequence.

Fig 3: Locating Upper Oil Pan Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the oil pan upper section carefully from the adhesive then push it off the alignment sleeves and remove it.
