Oil Pan Upper Section, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Tightening specification. Refer to Figure.

NOTE:

Replace The Seals And O-Rings.

Replace any bolts that were tightened with an additional turn.

CAUTION:

Risk Of Contaminating Lubricating System And Bearing.

Cover open parts of engine.

Fig 1: Identifying Rotating Plastic Brush For Removal Of Sealant From Upper Part Of Oil Pan And Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Danger Of Eye Injury.

Wear protective eyewear.

-- Remove the sealant residue on the cylinder block and the upper section of the oil pan, for example using a rotating plastic brush.

-- Clean the sealing surfaces; they must be free of oil and grease.

NOTE:

Note The Expiration Date Of The Sealing Compound.

Fig 2: Cut Tube Nozzle At Front Marking

Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2 mm).

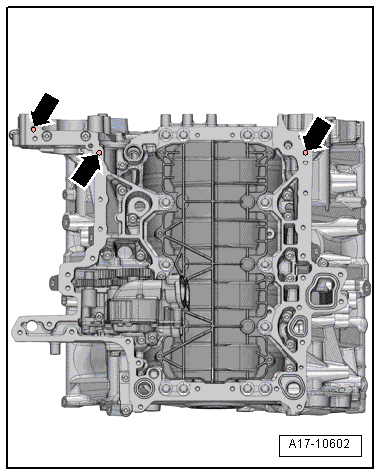

-- If there are no alignment bushings -arrows- at the locations marked in the cylinder block, insert them.

Fig 3: Identifying Alignment Bushings

Courtesy of AUDI OF AMERICA, LLC

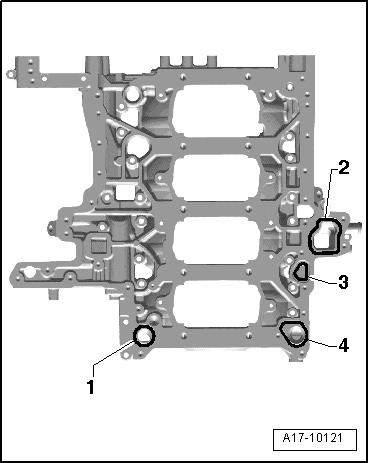

-- Lay the seals -1 to 4- in the groove on the guide frame.

Fig 4: Inserting New Seals Into Grooves On Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

-- Place the gasket -3- in the oil pan upper section.

Fig 5: Placing Gasket -3- In Upper Oil Pan

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The Lubrication System Could Be Plugged With Excess Sealant.

Do not apply sealant bead thicker than indicated.

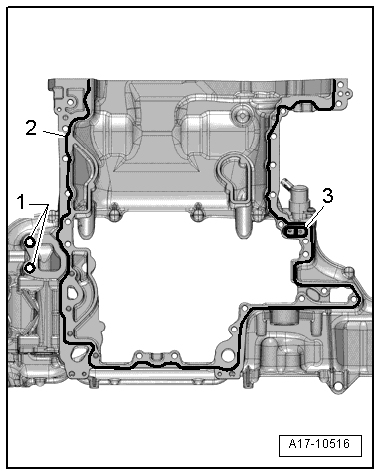

-- Apply sealant beads -1 and 2- to the clean sealing surface on the upper section of the oil pan as shown in the illustration.

Thickness of sealant beads: 2.5 mm.

NOTE:

Install The Upper Section Of The Oil Pan Within Five Minutes Of Applying The Sealant.

-- Position the lower section of the oil pan and tighten the bolts. Refer to Figure.

Fig 6: Locating Upper Oil Pan Bolts

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note The Following:

-- Install the oil pump. Refer to OIL PUMP, REMOVING AND INSTALLING .

-- Install the generator bracket. Refer to OVERVIEW - RIBBED BELT DRIVE .
