Oil Pan Lower Section, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Specification. Refer to Figure.

CAUTION:

Risk Of Contaminating Lubricating System And Bearing.

Cover open parts of engine.

Fig 1: Identifying Rotating Plastic Brush For Removal Of Sealant From Upper Part Of Oil Pan And Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Danger Of Eye Injury.

Wear protective eyewear.

-- Remove any sealant residue on the oil pan lower and upper sections using a rotating plastic brush.

-- Clean the sealing surfaces; they must be free of oil and grease.

NOTE:

Note the expiration date of the sealing compound.

Fig 2: Cut Tube Nozzle At Front Marking

Courtesy of AUDI OF AMERICA, LLC

-- Cut the tube nozzle at the front marking (nozzle diameter: about 2 mm).

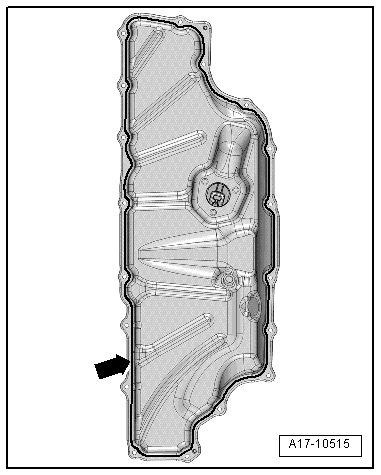

Fig 3: Applying A Sealant Bead -Arrow- To Clean Sealing Surface On Lower Oil Pan

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The Lubrication System Could Be Plugged With Excess Sealant.

Do not apply sealant bead thicker than indicated.

-- Apply a sealant bead -arrow- to the clean sealing surface on the lower part of the oil pan as shown in illustration.

Thickness of sealant bead: 2.5 mm.

NOTE:

Install the lower section of the oil pan within five minutes of applying the sealant.

-- Mount the oil pan lower section and tighten the bolts and threaded pins. Refer to Figure and then connect the connector -1-.

Fig 4: Identifying Lower Oil Pan And Oil Level Thermal Sensor

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note The Following:

-- Install the stabilizer bar. Refer to Subframe, Crossbrace, Stabilizer Bar and Coupling Rod Overview, through 08.2007 Subframe .

-- Fill the engine oil and check the level. Refer to
