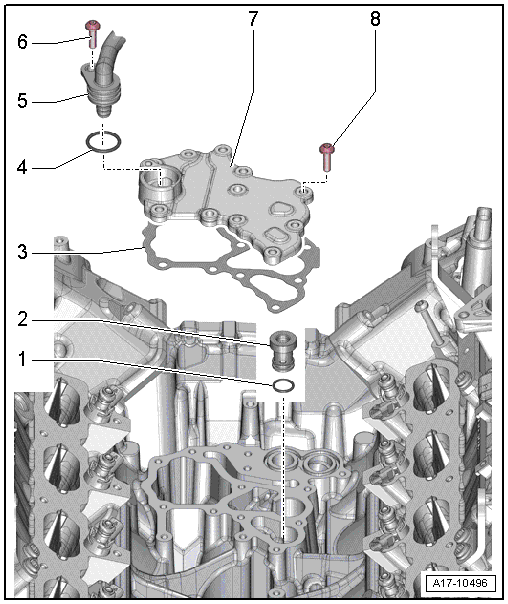

Overview - Oil Spray Jets/Valves
WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
- O-Ring
- Replacing
- Spray Nozzle Valve
- Removing and installing. Refer to OIL SPRAY JETS/VALVES, REMOVING AND INSTALLING .
- Seal
- Replacing
- O-Ring
- Replacing
- Oil Return Line
- Bolt
- 9 Nm
- Cover
- Bolt
- 5 Nm +90° turn
- Replacing
