Engine Oil Cooler, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

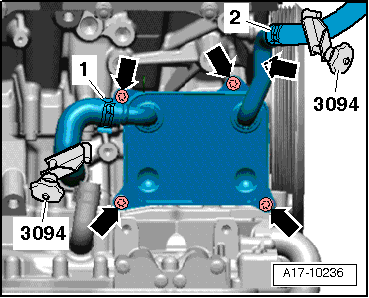

Fig 1: Clamping Off Coolant Hoses With Hose Clamps Hose Clamps Up To 25 mm Dia. 3094

Courtesy of AUDI OF AMERICA, LLC

-- Remove the generator bracket. Refer to AUXILIARY COMPONENTS BRACKET, REMOVING AND INSTALLING .

-- Place the Used Oil Collection and Extraction Unit: VAG1782 under the engine.

-- Loosen the hose clamps -1 and 2- and remove coolant hoses from the oil cooler.

-- Remove the bolts -arrows- and remove the engine oil cooler.

NOTE:

Ignore Hose Clamps - Up To 25 mm :3094 .
