Map Controlled Engine Cooling Thermostat -F265-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Unscrew the bolt -1- as well as the nut -3- and remove the exhaust manifold brace -2-.

Fig 1: Identifying Carrier Left Brace Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- on the Map Controlled Engine Cooling Thermostat -F265-.

Fig 2: Identifying Coolant Hose And Spring Clip

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the coolant hose by lifting the retaining clamps -2- and loosening the hose clamp -3-.

-- Remove the coolant hose -4-.

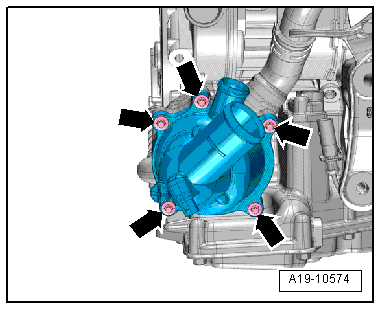

-- Remove the bolts -arrows- and the Map Controlled Engine Cooling Thermostat -F265-.

Fig 3: Identifying Bolts -Arrows- & Map Controlled Engine Cooling Thermostat

Courtesy of AUDI OF AMERICA, LLC
